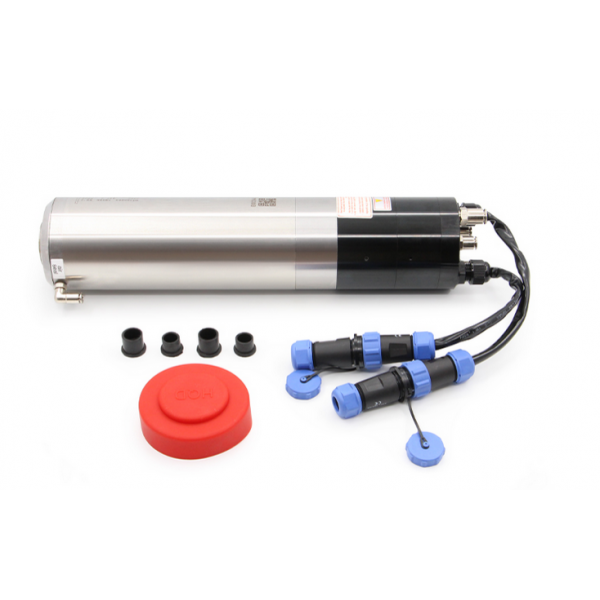

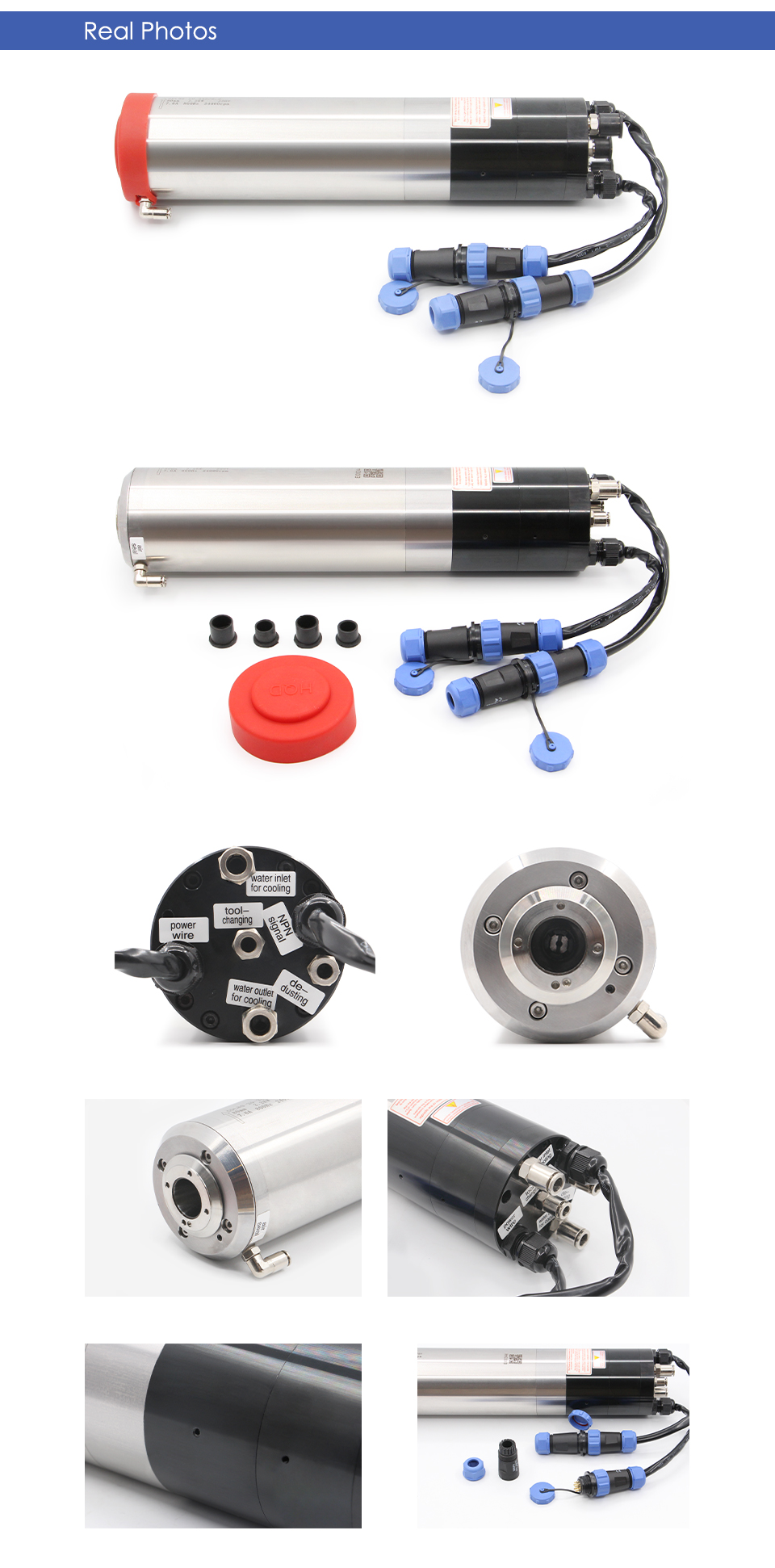

ATC 2.2KW Water Cooled Spindle Motor

Product Description

The ATC 2.2KW Water Cooled Spindle Motor is a robust and versatile component designed to excel in CNC machining applications. With a power output of 2.2 kilowatts, this spindle motor delivers the strength and precision needed for various machining tasks.

This motor is available in 220v or 380v.

Product Specs

Operating Speed: 24000rpm/30000rpm

Application: Milling

Model Number: GDL80-20-24Z/2.2

Drive: Motor

Certification: CE

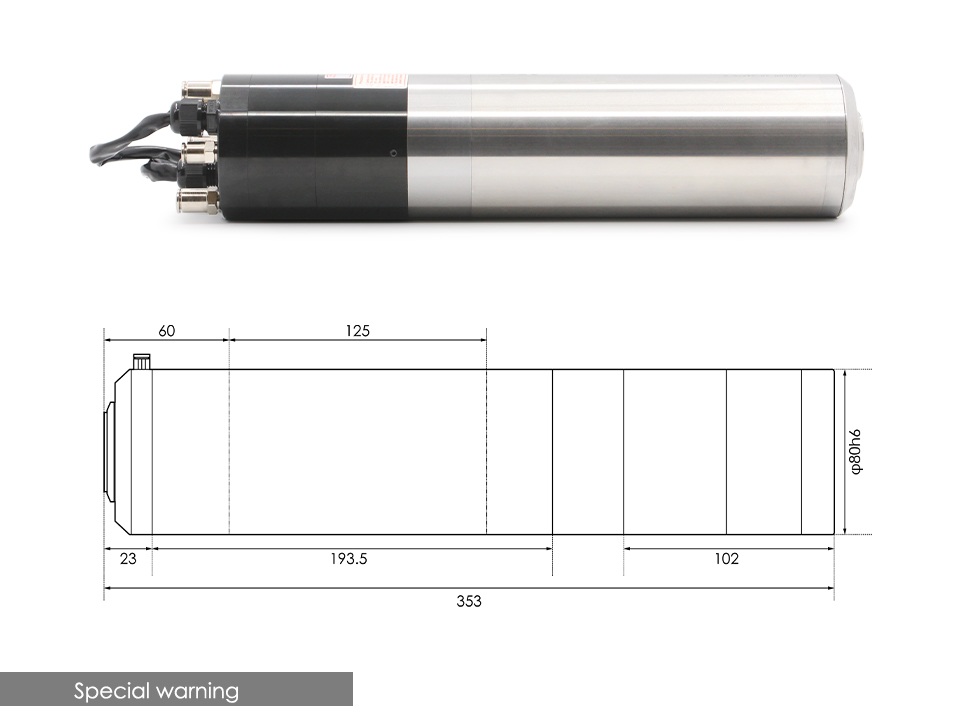

Size: 353*80mm

Power: 2.2KW

Current: 7.6A

Frequency: 400Hz

Rotating speed: 24000rpm

Pole number: 2P

Phase number: 3

Weight: 9kg

Blind rivet: IS020-15°

Tool holder: IS020

1. The electric spindle must be installed in the clamping position, otherwise the bearing will be damaged easily.

2. The spindle must be completely stopped to change the tool. The manual tool change button must not work when the spindle rotates, otherwise, the spindle will be stuck.

3. The compressed air must be clean and dry with a filtration accuracy of 0.1 microns. The gas seal is always open. It is recommended to use secondary filtration with a filtration accuracy of 0.5 microns and 0.1 microns, and the air filter has a self-draining device.

1. Power cord: three-color wire to U.V.W phase/yellow-green wire to ground Temperature control line: 110°C thermistor two-phase connected temperature control protector

2. Cooling water inlet: pump head 8m

3. Air seal pressure: 0.1-0.2MPa (4/2 hose)

4. Number of proximity switches: two NPN (normally open) N.O. Proximity switch connection method: brown wire is connected to +24VDC, and blue wire is connected to 0VDC One end of the signal load is connected to +24VDC/the other end is connected to the black wire

5. Tool change dust removal pressure: 0.2-0.3MPa (6/4 hose)

6. Cooling water: (2 and 6 ends
with 8/6 hose)

7. Cylinder intake pressure: 0.65MPa (6/4 hose)

Currently available on order, please contact us to place an order.
