Multifunctional Horizontal Rotary Metal Flange Dot Pin Pneumatic Marking Machine With Computer - PEQD-250G

Product Description

Neotronics SA has been in the CNC Laser industry for over 10 years. With unmatched support and price, we are one of the largest CNC Laser stores in South Africa.

Join the Neotronics Experience!

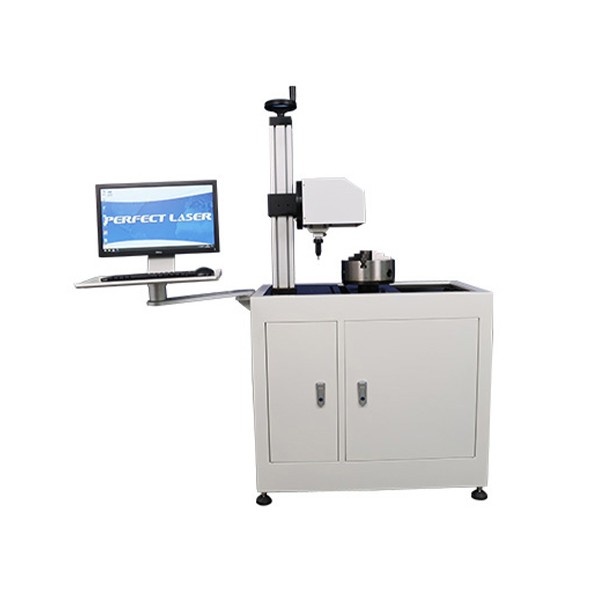

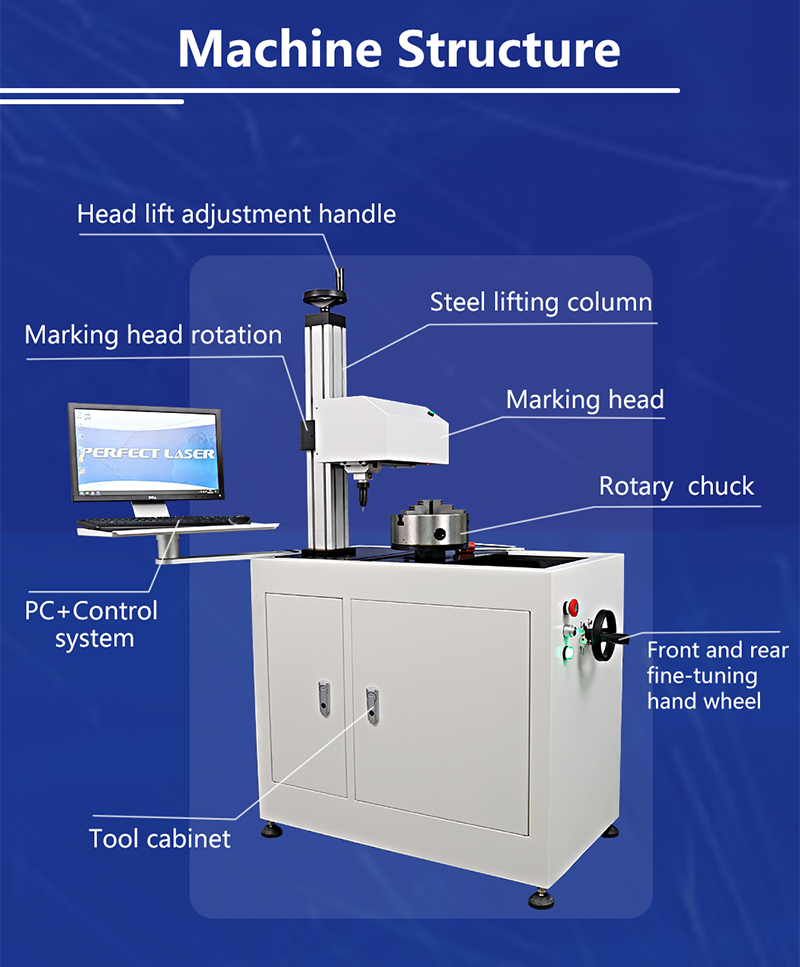

Perfect Laser's new dot pin marking machine PEQD-250G comes with a computer, adopts a rotation control system, and cooperates with the marking needle to rotate synchronously. The marking accuracy is high and smooth, and the service life is long. The horizontal rotary dot pin marking machine adopts a lifting column structure and an adjustable marking head. The position of the installation column can also be adjusted according to specific marking requirements, which is more practical.

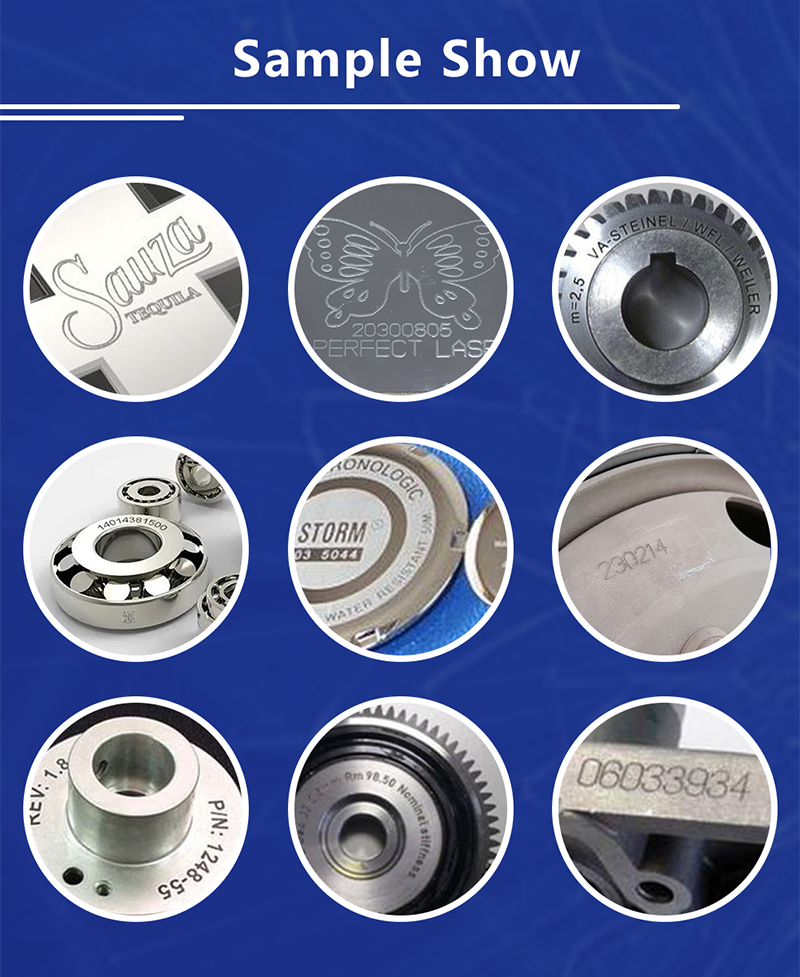

The dot pin marking machine is especially suitable for circumferential marking of metal and non-metal cylindrical, conical, and spherical workpieces.

Product Specs

• Working Area: Standard: 150mm×100mm | Optional: 200mm×100mm

• Marking Depth: 0.01～2mm

• Marking Speed:≤50mm/second (for characters height of 3mm or 3-4 numbers /second)

• Lifting Range: 0-300mm

• Chuck Diameter: Standard: 200mm; Optional: 125mm/160mm/300mm

• Repeated Accuracy: 0.01mm

• Pin Hardness: HRC92

• Power Supply: 220V±10％, 50Hz

• Air Pressure: 0.2-0.6 Mpa

• Machine Power: ≤400 W

• Working Environment: -5～40 ℃

• Machine Weight: 225kgs

• Dimensions(L×W×H): 102×62×153cm

• Packing Size: 107×67×166cm


Product Features

1. Perfect Laser dot peen machine comes with a computer, using WINDOWS operating system, horizontal rotary pneumatic marking machine can run in Windows 98/2000/XP environment, wide practicability.

2. The dot peen machine with a powerful software editing function, can arbitrarily arrange the required characters and graphics, compatible with AUTOCAD drawing software.

3. This dot peen machine adopts a user-friendly design, and simplified operation, which is conducive to improving work efficiency.

4. The pneumatic engraving machine can automatically print numbers, Chinese characters, special characters, dates, serial numbers, VIN codes, etc., It is various formats for users to choose.

5. The rotation system is connected to the computer, and the marking needle rotates synchronously. Two kinds of rotation modes can be selected, namely two-dimensional rotation and three-dimensional rotation.

6. The pneumatic engraving machine adopts rotary control system, which can both realize plane marking and marking along the circumference of the work piece.
