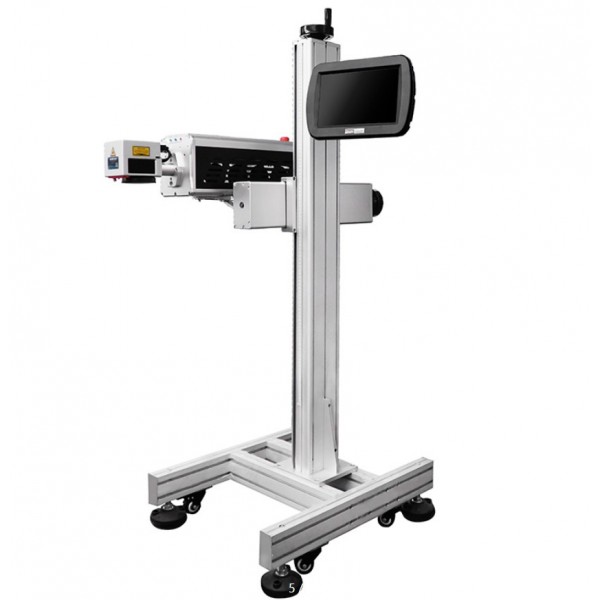

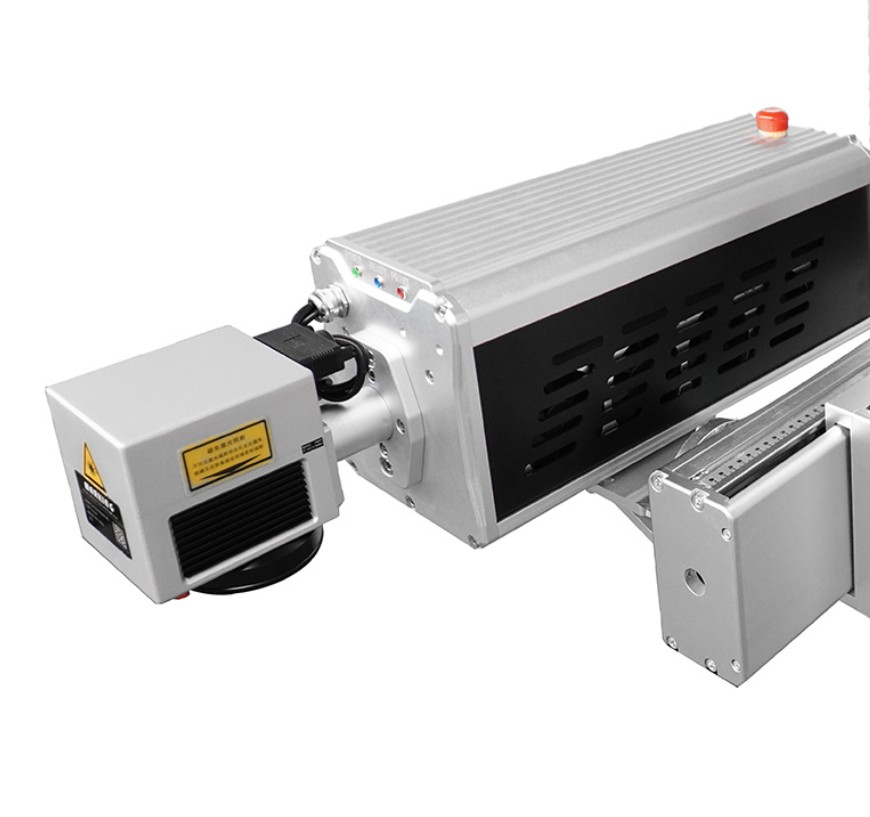

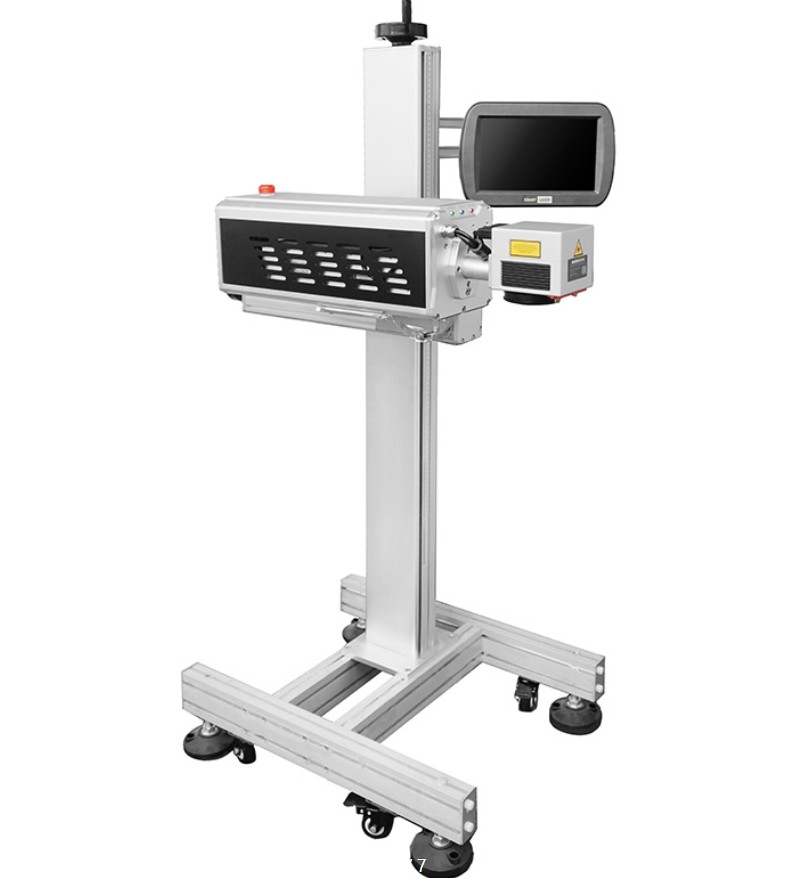

Industrial Flying Marking Machine CO2 - 40W
Product Description
Neotronics SA has been in the CNC Laser industry for over 10 years. With unmatched support and price, we are one of the largest CNC Laser stores in South Africa. Purchasing from Neotronics SA will give you free access to our large WhatsApp support group where you can be part of the Laser Art Community.
Join the Neotronics experience!
The industrial flying marking machine provides continuous marking on objects when used in a production line, so there is no need to stop. Saving time and increasing productivity. It is designed for continuous high-speed production lines, marking products while they're moving. This is the CO2 source, which makes use of the reliable CRD laser source, which is very powerful.
Please note: We do offer the conveyor feeder as an additional add-on to the machine to complete your production line; however, this can fit onto any existing conveyor.
This unit is specifically designed to work with the following materials:
- Plastic
- Paper
- Wood
- Leather
- Glass
- Packaging materials ( like cardboard, PET bottles, PVC )
The flying marking machine connects directly on the production line such as a conveyor system and marks on the fly.
Below is a video for demonstration purposes only:
Typical Applications or Industry use:
- Paper and Cardboard boxes - branding, barcodes, or QR codes
- Electronics and Cabling - ID markers, serial numbers
- Food and Beverage packaging - batch numbers, barcodes, and expiry dates
- Pharmaceutical products - trace info and scanning codes
- Cosmetic products - lot codes, traceability
Advantages of using a flying marking machine:
- Low maintenance - no consumables, ink, or paper
- High-speed marking - precise marking, ideal for fast production lines
- Permanent marking - resistant to water, heat, and abrasion
- Environmentally friendly - no chemicals
- Extensive warranty - 18 months warranty from us
- Easy usage - Software is easy to use, no need for a laptop. It is built-in with the screen and can also support USB import

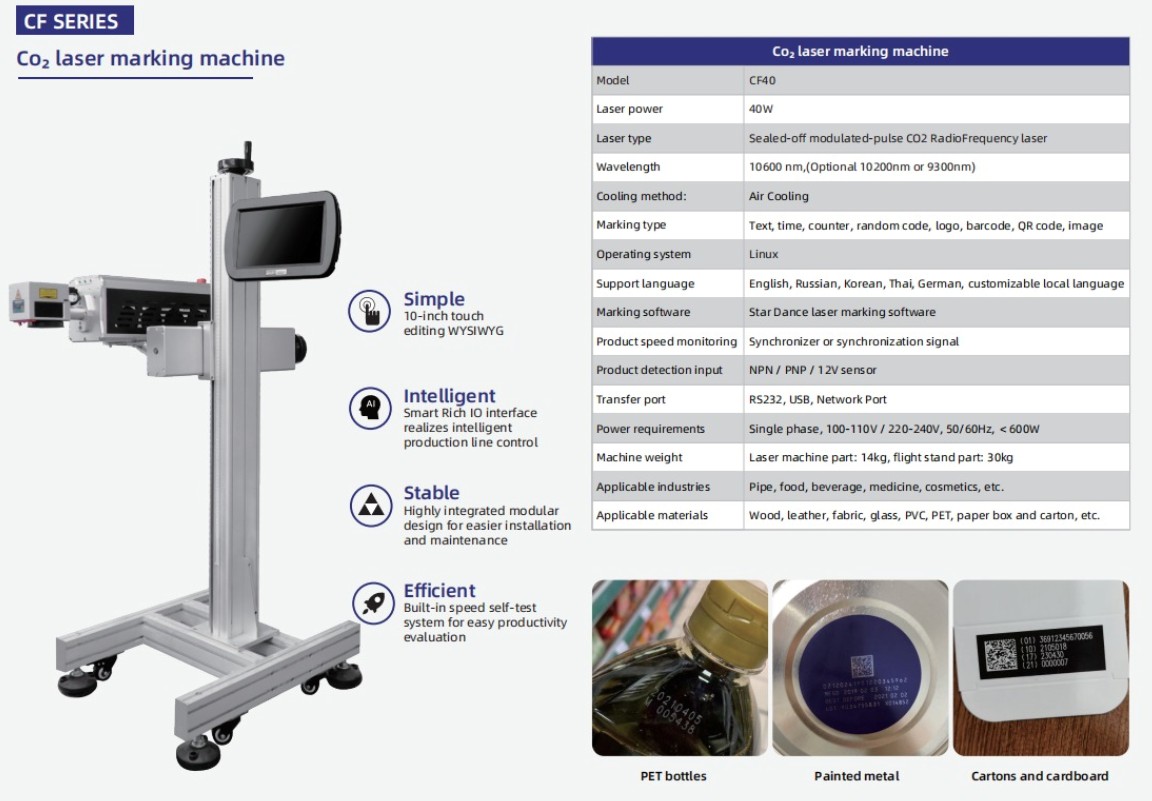

Technical Specs
General Information
- Condition: New
- Weight: 70 kg
- Configuration: Stand-alone
- Mode of Operation: Pulsed
- Feature: Air-cooled
Performance & Accuracy
- Key Selling Point: High Accuracy
- CO2 Power: 40W ( 60W can be offered on special )
- Working Accuracy: 0.002 mm
- Marking Depth: 0.01 – 1 mm
- Marking Area: Up to 110 mm × 110 mm (Customizable up to 600 x 600mm)
- Laser Wavelength: 10.6 µm
- Laser Head: Middle-speed Galvanometer
- Language: Customizable
- Laser wavelength: 10.6 μm
- Max Marking Speed:7000 mm/s
- Etching Speed: 1300mm/s
Control & Software
- Control System Brand: StarDance
- Marking Head Brand: Sino
- Control Software: Linux
- Panel Size: 10-inch touch screen
- Power & Cooling
- Cooling System: Air Cooling
- Power Supply: 220V / 50Hz / 1PH or 110V / 60Hz / 1PH
- Lifespan: 20,000 hours
Technical Compatibility
- Supported Graphic Formats: AI, PLT, DXF, BMP
Warranty & Support
- Warranty: 18 Months
- Application: Laser Marking
Model is CF40W
FAQ
1. How do you operate the machine? Is training necessary?
The machine is mainly controlled by Star Dance software, which is simple to use. It is similar to EZCAD 2. An operation manual with pictures will be provided. The Guide is straightforward.
Generally speaking, an operator who is not familiar with fiber laser marking can still operate it very well.
2. Where do you design the logo or branding for your material?
The design is done on the LCD panel, the software has a design tool where you insert the design, adjust the power, and apply the settings. Alternatively, you can also do the design on any design software as long as it is in the supported formats
and upload it via the USB connection.
3. Any consumables for the laser marking machine?
No consumables. It's very economical and cost-efficient.
Please note: Please confirm availability.
