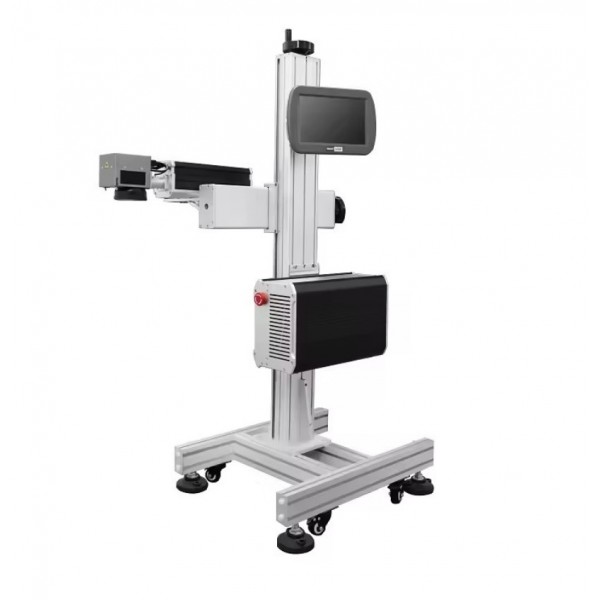

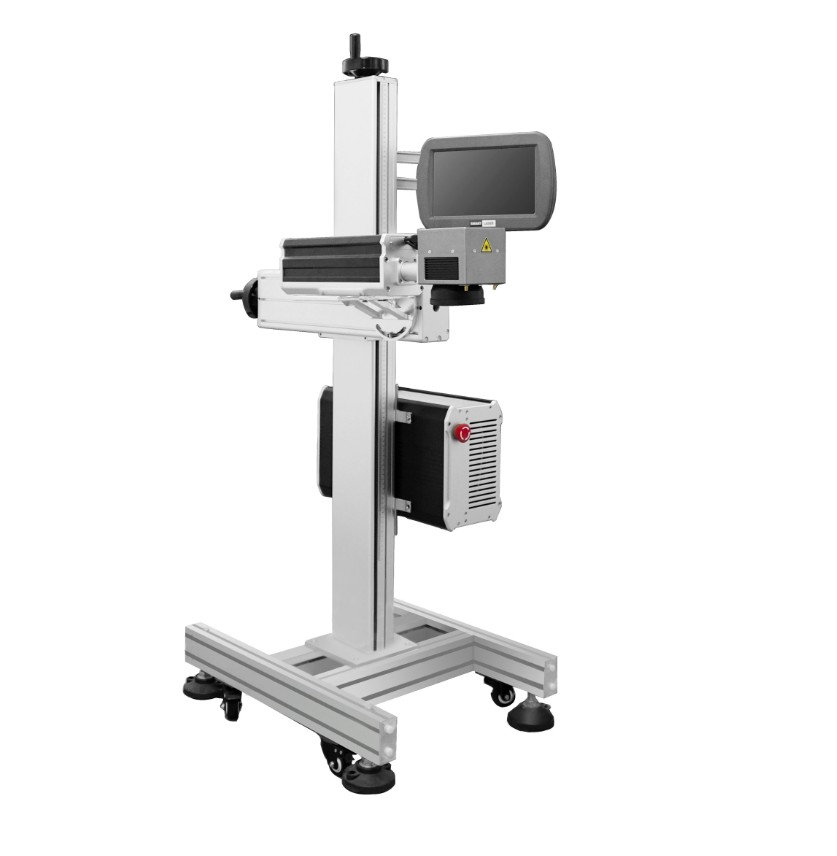

Industrial Flying Marking Machine Fiber Laser - 50W

Product Description

Neotronics SA has been in the CNC Laser industry for over 10 years. With unmatched support and price, we are one of the largest CNC Laser stores in South Africa. Purchasing from Neotronics SA will give you free access to our large WhatsApp support group where you can be part of the Laser Art Community.

Join the Neotronics experience!

The industrial flying marking machine provides continuous marking on objects when used in a production line, so there is no need to stop. Saving time and increasing productivity. It is designed for continuous high-speed production lines, marking products while they're moving. This is the Fiber laser source which makes use of the reliable Raycus QB model, specifically for metal and hard materials at ultra fine detailing.

Please note: We do offer the conveyor feeder as an additional add-on to the machine to complete your production line; however, this can fit onto any existing conveyor.

This unit is specifically designed to work with the following materials:

• Metal
• Aluminium
• Brass
• Stainless Steel
• Coated Materials

The flying marking machine connects directly on the production line such as a conveyor system and marks on the fly.

Some of its key features

Precision: 0.01mm accuracy for intricate marking tasks

Speed & Efficiency: High marking speed (up to 15,000 mm/s) for fast production cycles.

Versatility: Supports multiple graphic formats and materials (metals, plastics, composites).

Reliability: Air-cooled design for 24/7 operation; fiber laser source with 100,000-hour lifespan.

User-Friendly: Stand-alone configuration with intuitive Windows-based control software.

Safety & Compliance: CE-certified for international standards.

Typical Applications or Industry use:

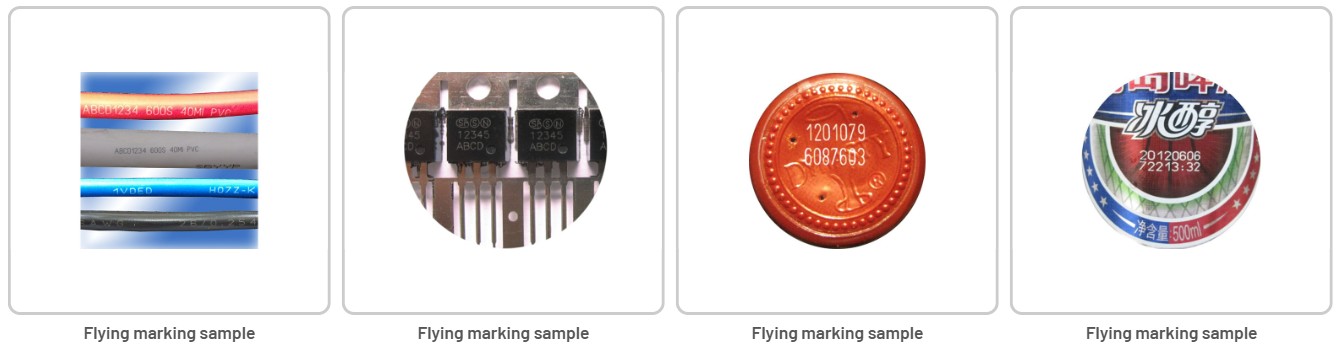

• Electronics & components – serial numbers, QR codes
• Automotive Parts – engine codes, VINs, identification marks, etc
• Metal tools & machinery – logos, branding and numbers
• Cable & wire industries – continuous marking on moving spools and wiring
• Plastic packaging (non-reflective)  – barcodes, lot codes, expiry dates

Advantages of using a flying marking machine:

• Low maintenance - no consumables, ink, or paper
• High-speed marking - precise marking, ideal for fast production lines
• Permanent marking - resistant to water, heat, and abrasion
• Environmentally friendly - no chemicals
• Extensive warranty - 24 months warranty from us
• Easy usage - The Software is easy to use, no need for a laptop. It is built into the screen and can also support USB import

Technical Specs

Marking Performance

• Marking Depth: 0.001 – 0.01 mm
• Marking Speed: 12,000 – 15,000 mm/s (Max 1300 mm/s)
• Marking Line Width: 0.04 mm
• Minimum Line Width: 0.1 mm
• Minimum Character Size: 0.3 mm
• Marking Area: 110 × 110 mm (Customizable up to 600 x 600mm)
• Etching Speed: 1300 mm/s
• Max Marking Speed: 7000 mm/s
• Source: Raycus / JPT

Laser & Optical System

• Laser Wavelength: 1064 nm
• Mode of Operation: Pulsed
• Laser Source Lifespan: 100,000 hours
• Cooling & Configuration
• Cooling System: Air-cooled (Integrated)
• Configuration: Stand-alone
• Cooling Method: Air cooling

Control & Interface

• Control Software: Windows XP/NT
• Control System Brand: Guangyue
• Screen: 10-inch touch screen
• Transfer Ports: RS232, USB, Network Port
• Processing Methods: Online / Static
• Language: Customizable

Power & Efficiency

• Power Consumption: 20W / 30W / 50W
• CNC Compatibility: Yes

Physical

• Weight: 80 kg

Supported Formats

• AI, PLT, DXF, BMP, DST, DWG, DXP
