FT232RNL USB TO RS232/485/422/TTL Interface Converter, Industrial Isolation

Product Description

Original FT232RNL | Stable transmission | Multiple devices applicable | Multi-OS compatible

Product Features

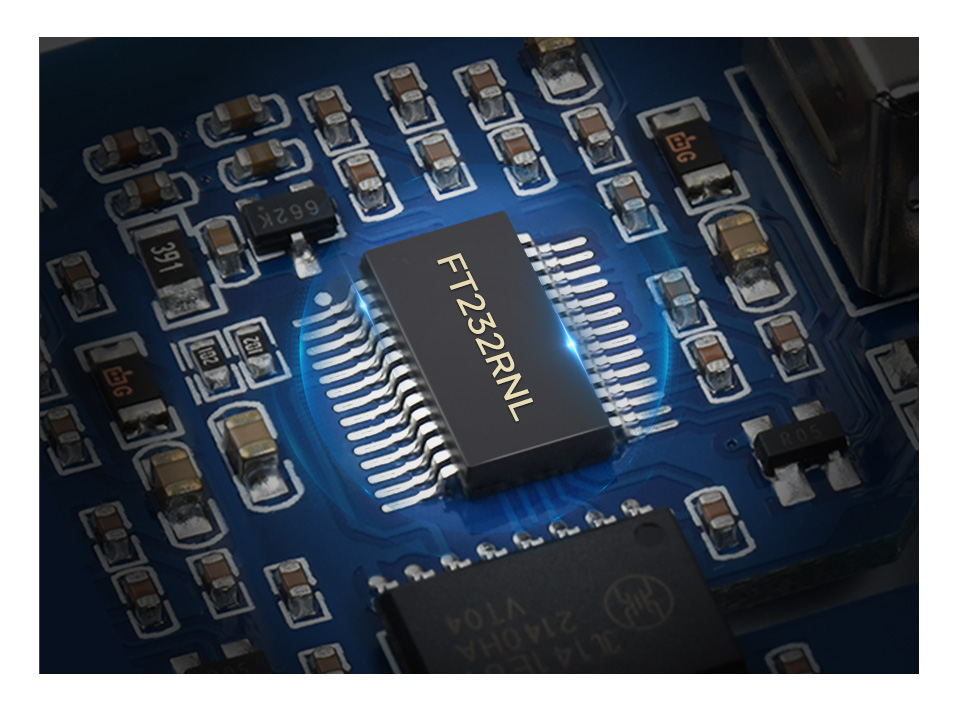

• Adopt original FT232RNL chip, fast communicating, stable and reliable, better compatibility
• Supports multiple communication interface conversion: USB to RS232, USB to RS485, USB to RS422, USB to TTL
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning proof & ESD protection
• Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
• Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fast and stable, without interfering with each other
• Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch
• 3 LEDs for indicating the power and transceiver status
• High quality USB-B and RS232 connectors, smoothly plug/pull
• Industrial grade metal case, supports wall-mount and rail-mount installations, solid and beautiful, easy to install

Product Specs

• Product Type: Industrial grade digital isolated converter
• USB Operating voltage 5V
• Connector: USB-B
• Protection: 200mA self-recovery fuse, isolated output
• RS232 Connector: DB9 male
• Protection TVS diode, surge protection & ESD protection
• Transmission mode: Point-to-point
• Baud rate: 300bps ~ 921600bps
• RS485/422 Connector: Screw terminal
• Direction control: Hardware automatic control
• Protection: 600W lightning proof and surge-suppress, 15KV ESD protection (reserved two 120R balancing resistors, enabled/disabled via jumper)
• Transmission mode: Point-to-multipoint (485 mode: up to 32 nodes, it is recommended to use repeaters for 16 nodes or more； 422 mode: up to 256 nodes, it is recommended to use repeaters for 16 nodes or more)
• Baud rate: 300bps ~ 2Mbps
• TTL (UART) Operating voltage: 3.3V / 5V
• Connector: Screw terminal
• Pins: TXD, RXD, GND, 5V/3.3V
• Protection clamp protection diode, over-voltage/negative-voltage proof, shock proof
• Transmission mode: Point-to-point
• Baud rate: 300bps ~ 2Mbps
• Indicators PWR Red power indicator, light up when there is USB connection and voltage is detected
• TXD TX indicator, light up when the USB port sends data
• RXD RX indicator, light up when the device ports send data back
• Operating Environment Temperature: -15℃ ~ 70℃
• Humidity: 5%RH ~ 95%RH
• Operating System: Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7

Safer Isolated Design

• Onboard Unibody Power Supply Isolation, Provides Stable Isolated Voltage, Needs No Extra Power Supply For The Isolated Terminal

Multi System Support
Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, Etc.

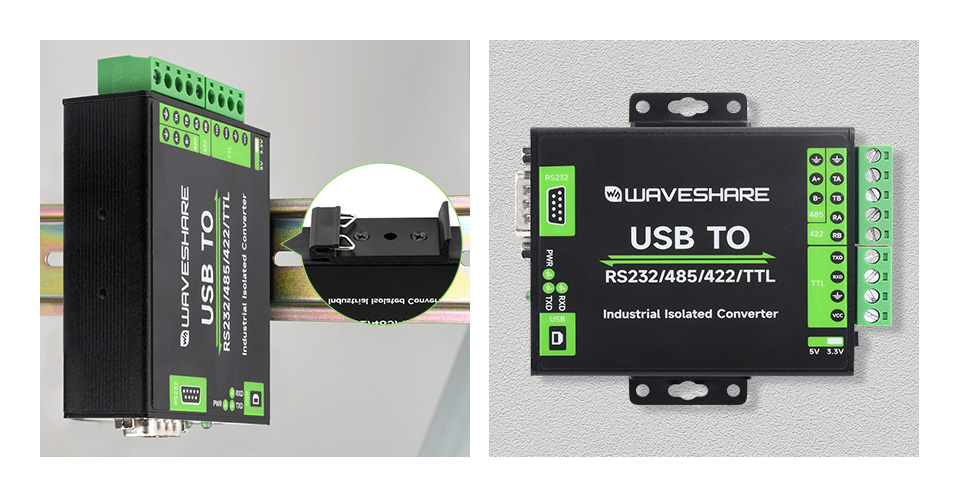

Aluminium Alloy Enclosure

• Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation
• Solid And Durable, Fashionable And Good Hand Feeling
• Wall-Mount And Rail-Mount Support, More Flexible For Industrial Installation
