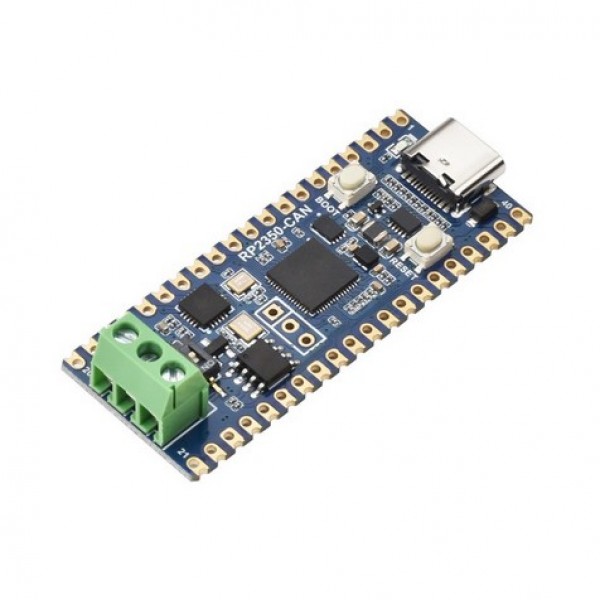

Waveshare RP2350 CAN Development Board, Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller - Onboard XL2515 CAN Controller

Waveshare RP2350 CAN Development Board, Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller - Onboard XL2515 CAN Controller

Waveshare RP2350 CAN Development Board, Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller - Onboard XL2515 CAN Controller

Product Code: Waveshare-RP2350
Availability: In Stock
R347.83 (Incl Vat R400.00)
Secure Checkout
Pay via Payfast or Bank Transfer
Fast Overnight Delivery to your door
South Africa Only
Guaranteed Customer Support
Need help? We are available to support
Guaranteed Best Price Shop with Confidence knowing you've got the best price
Payment Options
Shipped via our Trusted Courier Partners

Waveshare RP2350 CAN Development Board, Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller - Onboard XL2515 CAN Controller

Product Description

The Waveshare RP2350 CAN Development Board is a high-performance embedded solution designed for CAN bus communication projects. Powered by the Raspberry Pi RP2350A microcontroller, it features a dual-core, dual-architecture (ARM Cortex-M0+ and AndesCore N22) design, delivering both flexibility and efficiency for a wide range of embedded and IoT applications. Equipped with the onboard XL2515 CAN controller and transceiver, this board enables seamless integration with Controller Area Network (CAN) systems, making it ideal for industrial automation, automotive electronics, and real-time control systems.

Its compact layout, rich I/O interfaces, and robust processing capabilities make the RP2350 CAN Development Board a perfect choice for developers and engineers building custom CAN-based solutions.



Product Specs

  • RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
  • 520KB SRAM and 4MB onboard Flash memory
  • Onboard XL2515 CAN controller, fully supports CAN V2.0B specification with communication rate up to 1 Mbps
  • Type-C connector, keeps it up to date, easier to use
  • Castellated module allows soldering directly to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 12 × Programmable I/O (PIO) state machines for custom peripheral support

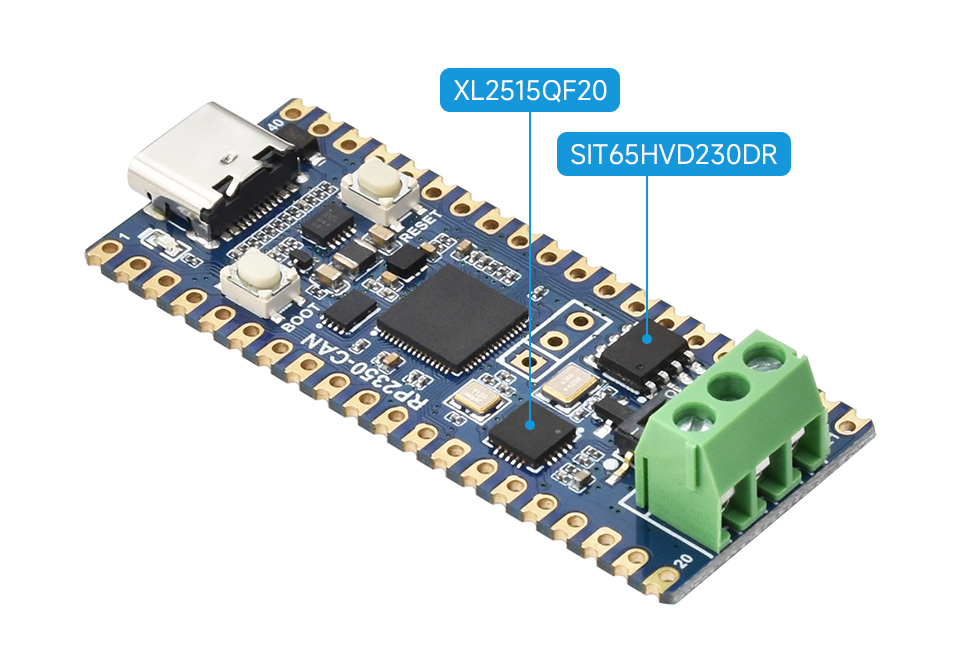

 Fully supports CAN V2.0B specification and is capable of transmitting and receiving standard, extended, and remote frames. The communication rate is up to 1 Mbps with SIT65HVD230 transceiver.

26 × multi-function GPIO pins

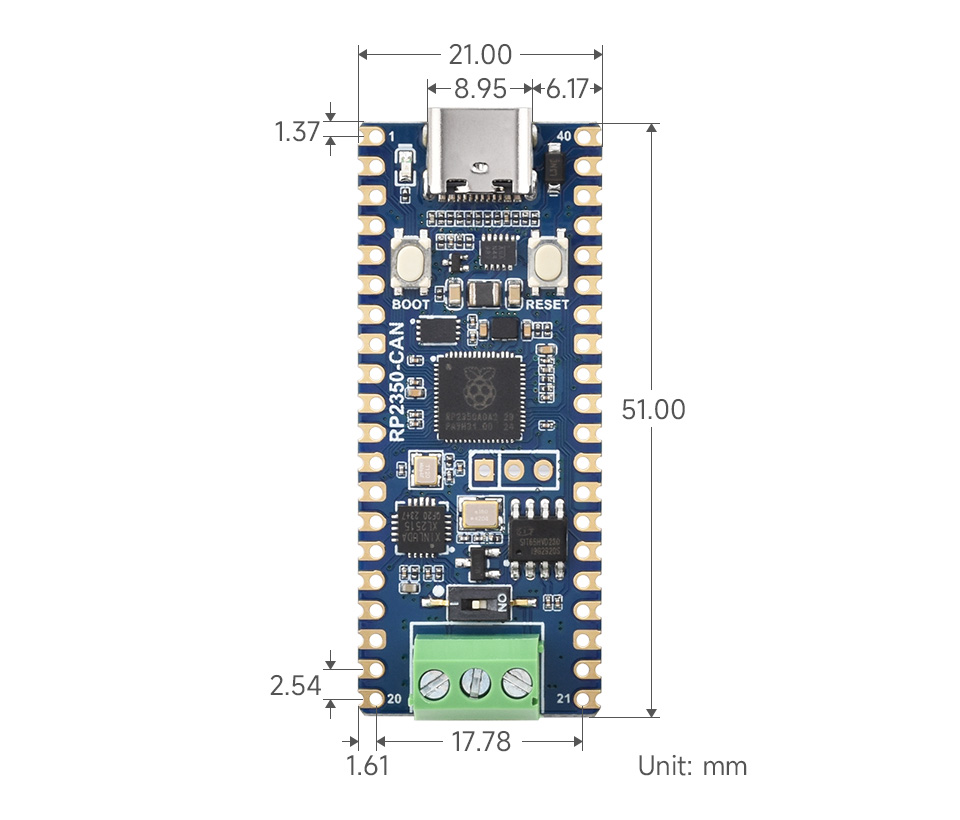

Outline dimensions
