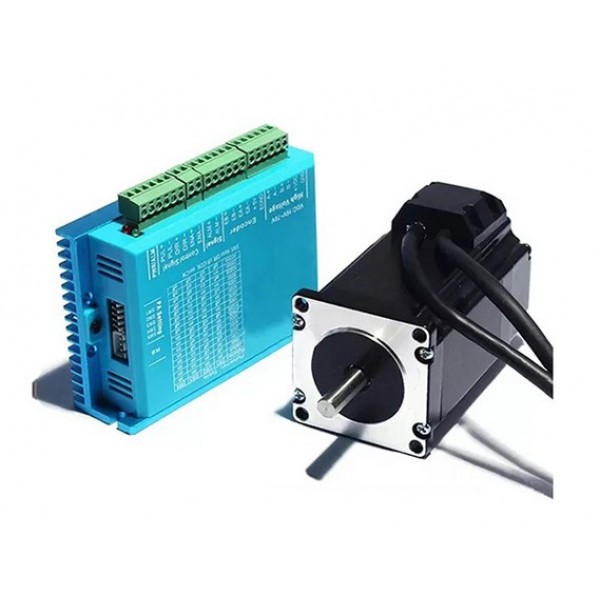

Closed Loop Stepper Motor Nema 23 3Nm + HBS57 Driver

Product Description

Achieve precision and reliability in your projects with the Closed Loop Stepper Motor Nema 23 (3Nm) paired with the HBS57 Driver. Designed for smooth, accurate motion, this combo is ideal for CNC machines, 3D printers, robotics, and automation systems. Upgrade your motion control system with a durable, efficient, and precise stepper solution that delivers professional results every time.

Product Specs

• Stepper Motor model: 57HSE3N
• Shaft Diameter: 8mm
• Step angle/phase: 1.8 Degree
• Hold torque:  3N.M
• Encoder cable:  5000mm
• Motor cable:  5000mm
• Rated voltage/current: 3.5A
• Outlet mode: single output shaft
• Rated speed: 1000 rpm (no-load speed: 2000 rpm)
• Outlet mode: two-phase four-wire (must be wired according to motor label)
• Suit for Controller: DDCS V3.1, UC300

• Maximum peak current:  5A
• Impulse response frequency:  200KHz
• Subdivision: 200~51200ppr
• Voltage: DC16-70VDC
• Pulse Signal: 3.3V/5V/24V compatible. No string resistor required
• Protective function: overvoltage, overcurrent, tracking error out of tolerance
• Signal input Compatible:5-24V signal (Don’t need a resistor)
• Control Way: 32-bit DSP Vector Closed Loop
• Advantage: Closed-loop vector control to ensure high-speed and high-torque output of the motor and no step to lose

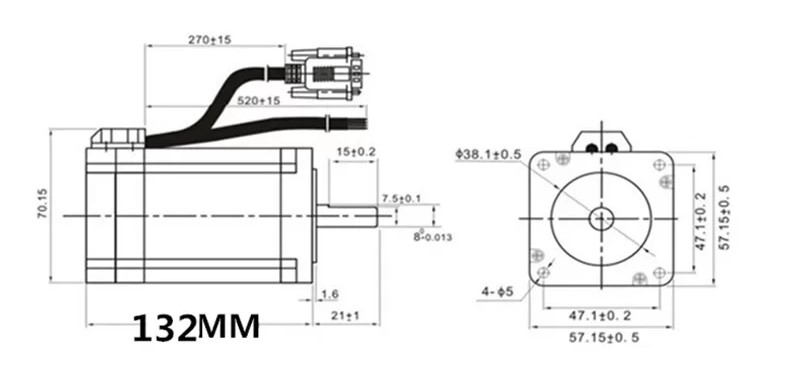

Details of Motor:

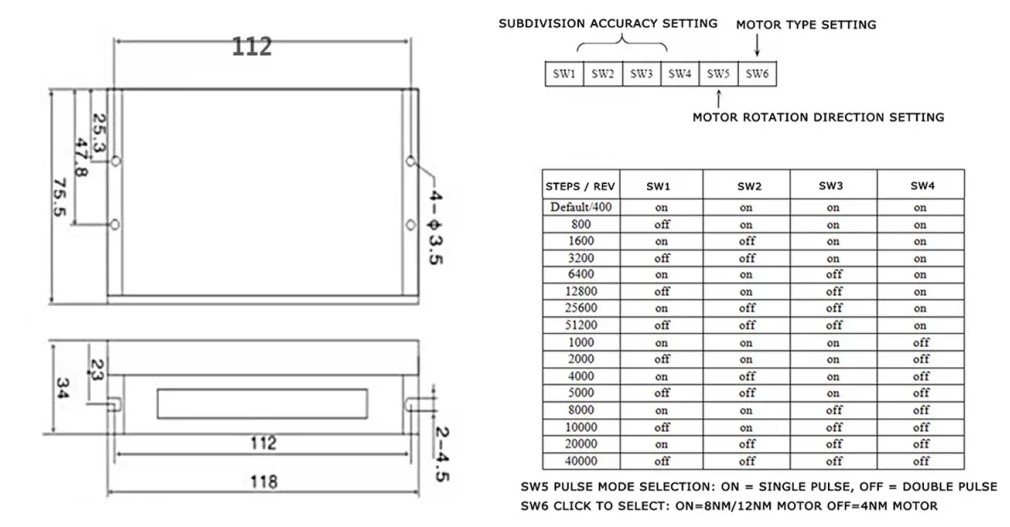

Details of Stepper Drive HBS57:

Product Features

• Low heat (static, the current is almost zero, no heat).
• Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping motor troubled low frequency resonance has a very good resistance).
• Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine / placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.
• Large torque output in some cases can simplify the complexity of the machine.

Please note: Locally Stocked. Available for Immediate Shipping.
