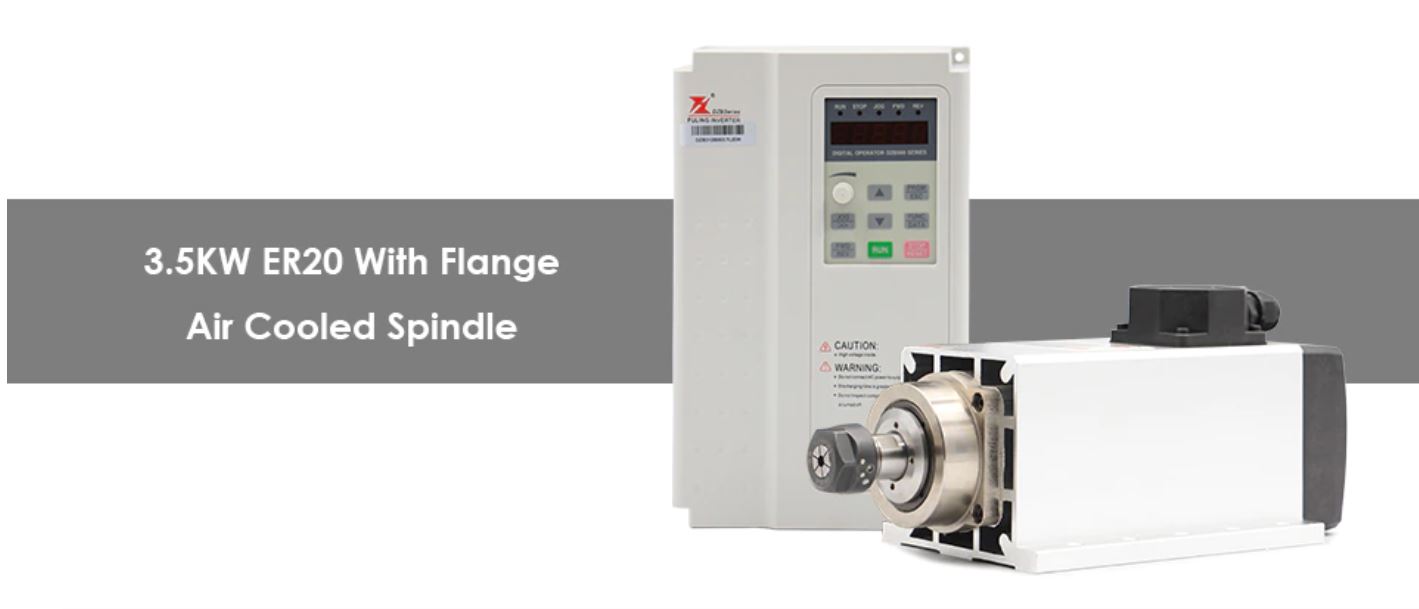

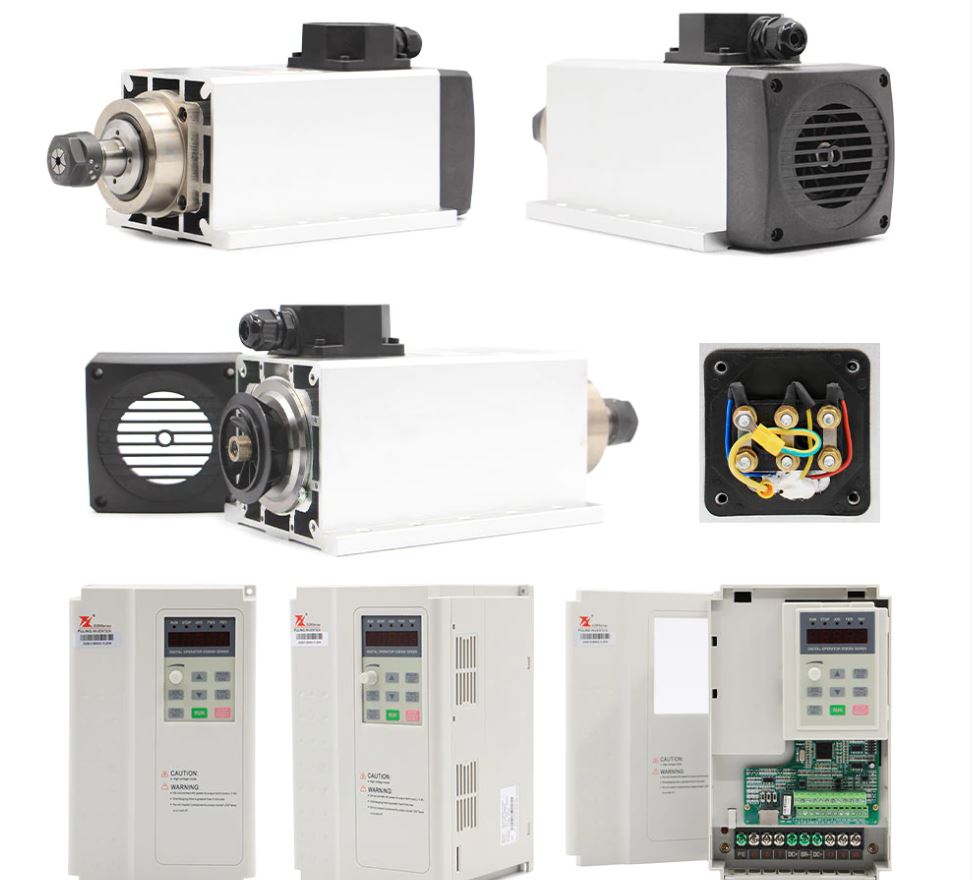

3.5KW Air Cooled Spindle Motor + 3.7KW Fuling VFD Inverter

Product Description

Neotronics SA has been in the CNC Laser industry for over 7 years. With unmatched support and price, We are one of the largest CNC stores in South Africa. Join the Neotronics experience!
The spindle motor and VFD combo is the all in 1 package you need for your CNC Router Machine.

Product Specs

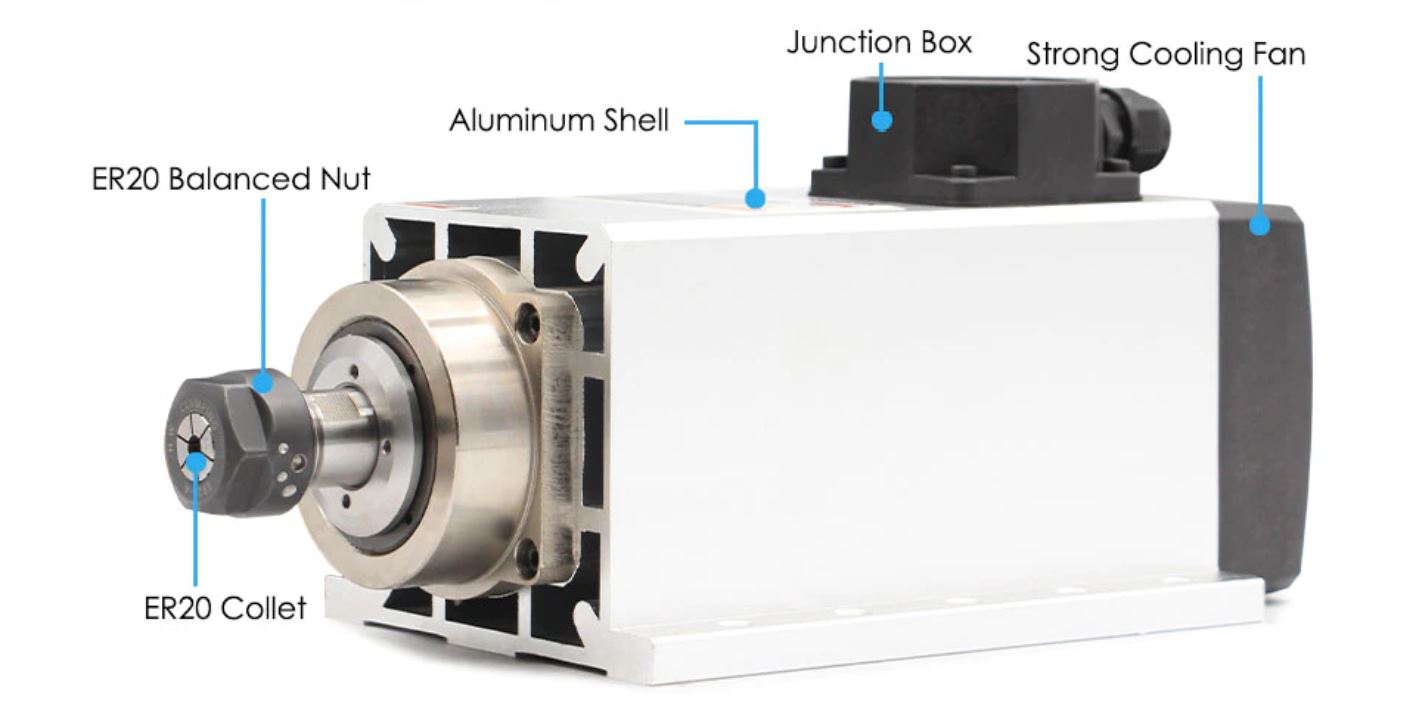

• Size: 308x104x135mm
• Speed Ways: Through a 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
• Cooling: Air cooling
• Power Interface:Junction box U1,V1,W1 connect to inverter U,V,W
• Power:3.5kw (1HP=0.735w)
• Voltage: 380v
• Phase: 3 Phase
• Current: 15A
• Frequency: 0-300Hz
• Speed: 0-18000rpm
• Runout Off:Less than 0.01mm
• Bearing Type: 2x7005C P4 DB ( Ceramic ball bearings ) & 2x7203C P4 DT
• Collet: ER20
• Clip Knifediameter:1mm,2mm,3mm,3.175mm(1/8),4mm,5mm,6mm,6.35mm(1/4),7mm, 8mm,9mm,10mm,11mm,12mm,12.7mm(1/2),13mm
• Grease Lubrication
• Main Application: Engrave for wood, bamboo, normal PCB, PVC, PMMA, plastic, duotone board(ABS), and etc nonmetal, also can engrave on gold, silver, copper, aluminium,PCB, etc soft metal surface working.

Some Advantages with our Spindle Motor

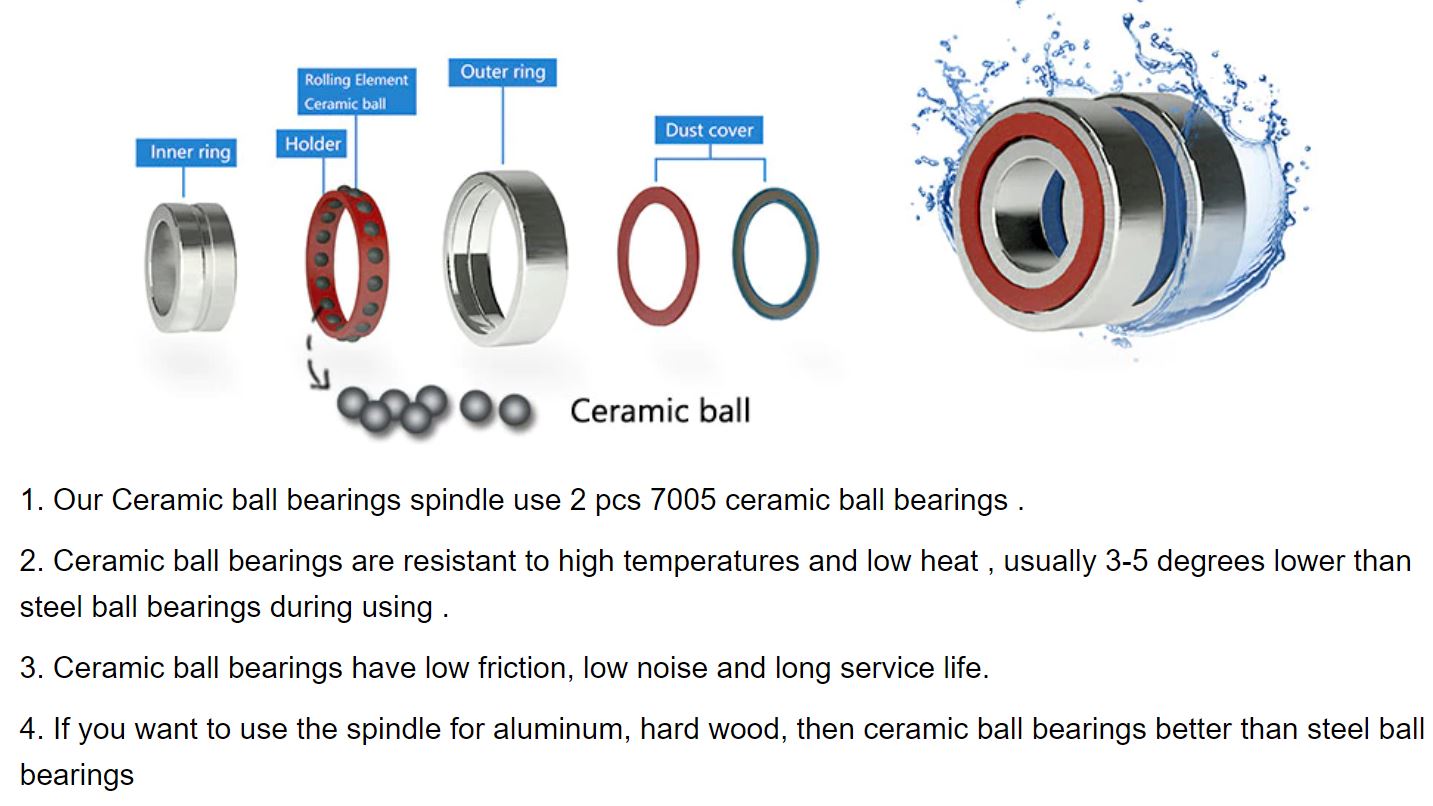

• Bearing is P4 grade, 2x7005C P4 DB ( Ceramic ball bearings ) & 2x7203C P4 DT
• The front-end bearings are ceramic ball bearings, increasing the spindle life.
• 3.5kw ER20 air-cooled spindle, the collet nut range from 1mm to 13mm.
• High precision, runout off less than 0.01mm.Coaxial degree less than 0.0025mm

Structural features :

• High-speed electric main bearings used in all C class high-speed angular contact ball bearings, axial pre-load feature, improved support stiffness, and live spindle grinding accuracy under high-speed rotation.
• Spindle speed according to different uses can be high-speed grease and oil mist lubrication two ways.
• Spindle speed rotation temperature rise caused by the use of a coolant circulation system was eliminated.

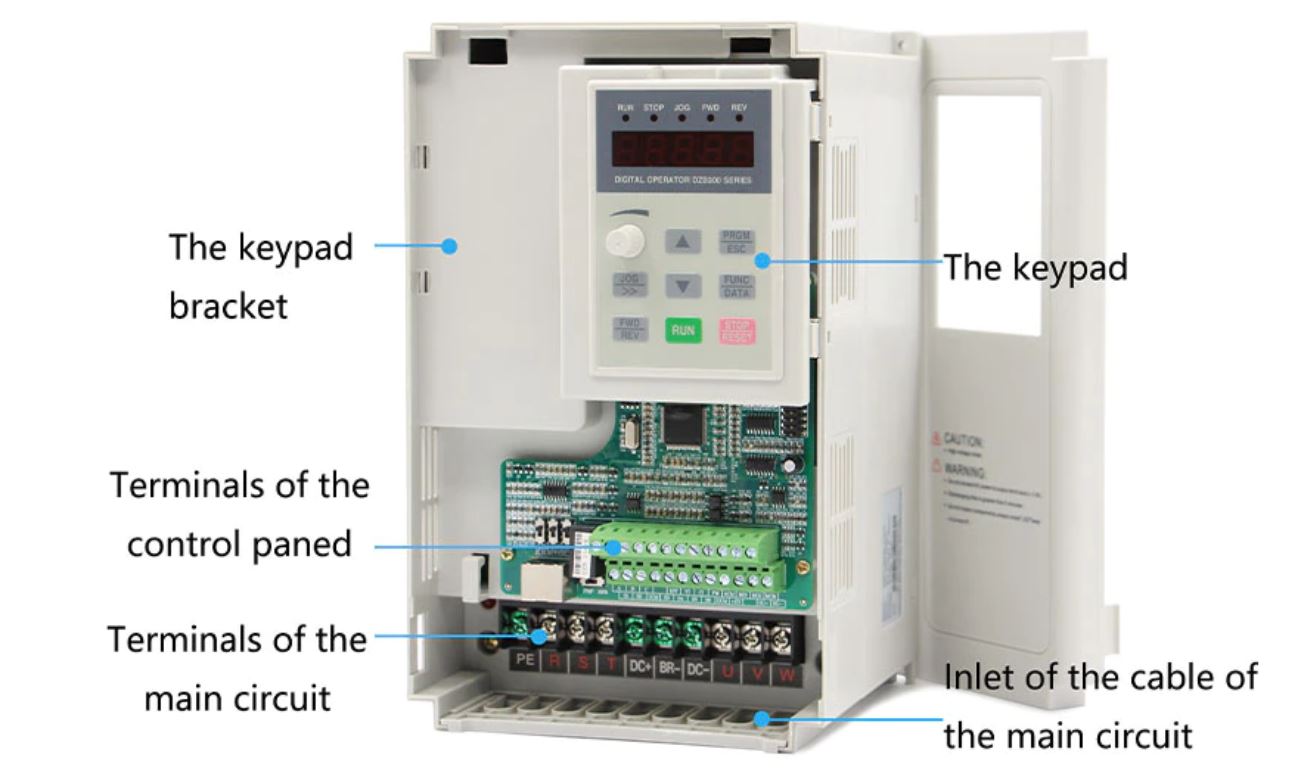

VFD Parameters

• Inverter Number: Fuling 220v 3.7kw
• Input Voltage: 220v(+/-15%)
• Input Frequency: 50/60Hz
• Input Phase: 1 or 3 phase
• Output Voltage: 220vAC
• Output Frequency: 0-1000 Hz
• Output Current:15A
• Output Phase: 3 phase

Some Advantages of our VFD Control

• Two-speed control modes: no PG vector control (SVC), V/F control
• No PG vector control (SVC): starting torque 0.5Hz up to 150%
• 8-stage simple PLC function, multi-speed control, and PID control

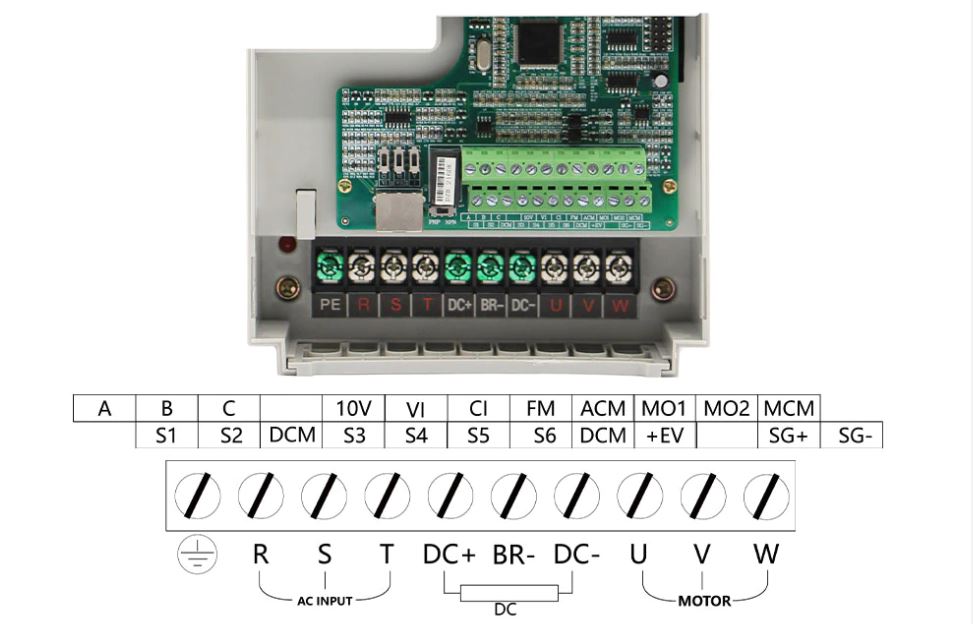

• Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting
• I/O terminals can be freely programmed to combine multiple working modes according to user needs.
• With the jump frequency control function, it can effectively suppress mechanical resonance and make the system more stable and reliable.
• With an instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure
• With over-torque and under-torque detection
• Automatic voltage adjustment function to effectively solve the low-frequency oscillation problem of high-power motor
• Provide a variety of fault protection functions: over-current, over-voltage, under-voltage, over-heat, overload, and lack of equal real-time monitoring and protection to ensure safe operation
• Built-in reactor with inverter above 37kW, which improves the power factor of the input side and improves the efficiency and stability of the whole machine
• 0.75~15kW built-in braking unit.

Available on order - Please confirm Availability.
