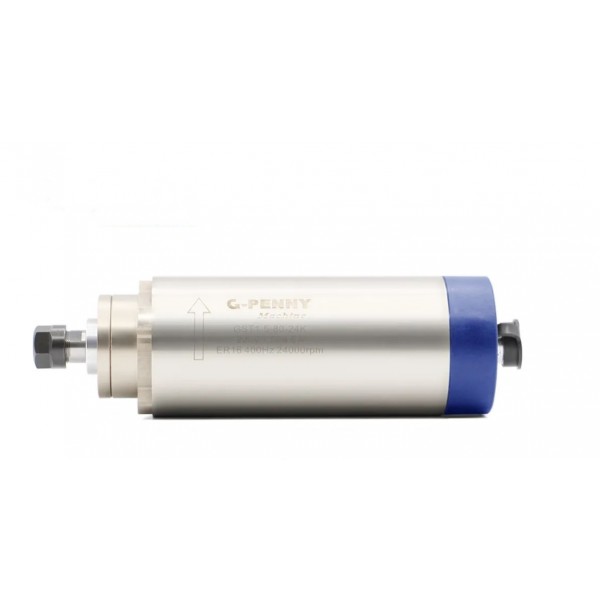

CNC Spindle Motor Air Cooled 1.5KW

Product Description

Neotronics SA has been in the CNC Laser industry for over 7 years. With unmatched support and price, We are one of the largest CNC stores in South Africa. Join the Neotronics experience!

We supply high quality spindle motors at affordable prices.

This is the CNC Spindle Motor Air Cooled 1.5KW. This Spindle Motor uses ER16 Collets with 220V and 4 bearings. It is a very powerful unit.

Product Specs:

• Size:80x198mm ( Body diameter:80mm;  Length:198mm)
• Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
• Cooling: Air cooling
• Power Interface: Optional KC20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to the inverter (U, V, W), and 4 connected inverter ground. (Pay attention! our spindle "4" connecting to GND, promised personal safety!!)
• Power:1.5kw
• Voltage:220vA
• Current:6A
• Frequency:0-400Hz
• Speed:0-24000rpm
• Runout Off: 0.01mm
• Diameter(mm): 80 or 65mm ( if require 65mm please specify on the order )
• Bearing Type: 2X7004C P4 DT and 2X7002C P4 DT
• Full sealed angular contact bearings
• Collet: ER16
• Clip Knifediameter:10mm,9mm,8mm,7mm,6.35mm,6mm,5mm,4mm,3.175mm,3mm,2mm,1mm
• Air Cooling ER16 collet chunk
• Grease Lubrication
• Main Application: Engrave / Cut for wood, bamboo, normal PCB, PVC, PMMA,plastic, duotone board(ABS)and etc nonmetal, also can engrave on gold, silver,copper, aluminium,Pb etc soft metal surface working.

_{Please note: Locally Stocked, Available for Immediate Shipping.}
