CNC Spindle Motor Air Cooled 4KW Kit

Product Description

Neotronics South Africa provides high quality CNC Spindle Motors that are all tested and certified. We provide expert advice through our past experiences. In addition these CNC Spindle Motors are high powered and must be installed and used with caution, Installation guide is provided upon purchase. We provide shipping with insurance to your door.

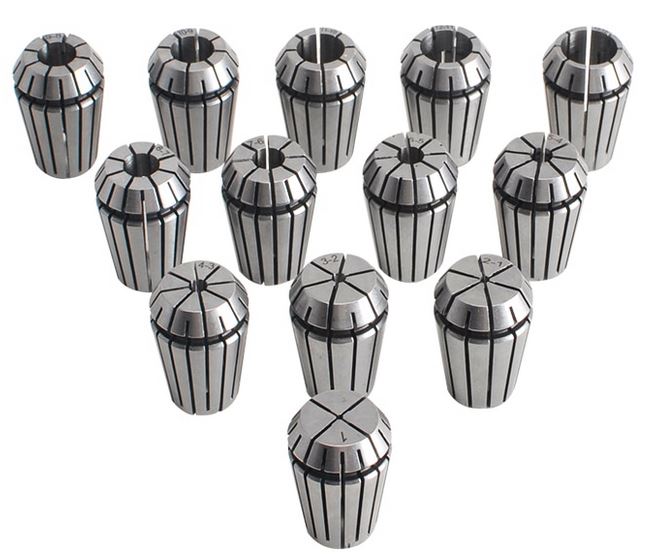

This is the powerful 4KW spindle motor, it comes with the VFD Inverter and a set of 13 ER20 collets.

Product Specs:

•    Application: Milling
•    Operating Speed: 10 - 24000RPM
•    Drive: Motor
•    Frequency: 300Hz
•    Voltage: 220V
•    Collet: ER20 Collet Chuck
•    Type5: Milling Machine
•    Power: 4KW
•    Material: Stainless Steel
•    Current: 10A
•    Frequency: 0-300Hz
•   Cooling: Air-cooled
•   Runout off: Less than 0.005mm
•   Bearing Lubrication: Grease
•   Bearings: 4 bearings(C7005x2 + C7003x2)
•   Weight : 14KGS

Spindle Motor Size:

_{Please confirm Availability.}
