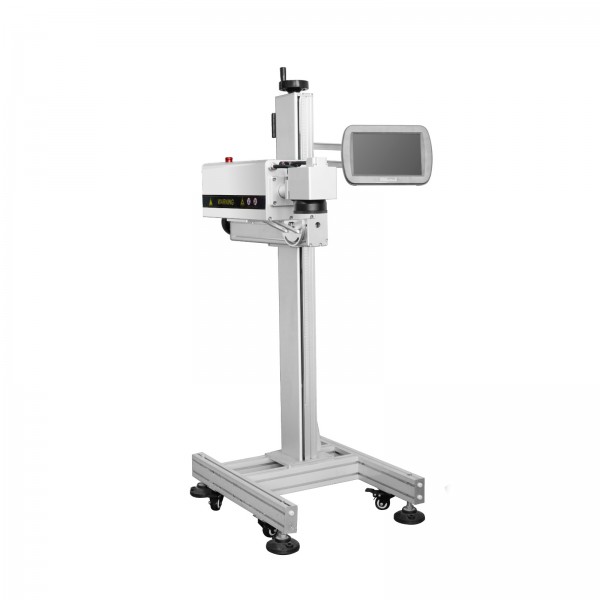

Industrial Flying Marking Machine UV Laser - 5W

Product Description

Neotronics SA has been in the CNC Laser industry for over 10 years. With unmatched support and price, we are one of the largest CNC Laser stores in South Africa. Purchasing from Neotronics SA will give you free access to our large WhatsApp support group where you can be part of the Laser Art Community.

Join the Neotronics experience!

The industrial flying marking machine provides continuous marking on objects when used in a production line, so there is no need to stop. Saving time and increasing productivity. It is designed for continuous high-speed production lines, marking products while they're moving. This is the UV source that makes use of the reliable JPT laser source, which is very powerful, provides ultra-fine marking on delicate and sensitive materials.

Please note: We do offer the conveyor feeder as an additional add-on to the machine to complete your production line; however, this can fit onto any existing conveyor.

Please note: The Chiller is not provided. We will recommend a chiller that can be purchased at your local store. Everything else is provided. We offer the 5W UV laser source option. Should you need the 10W UV laser source, please contact us.

This unit is specifically designed to work with the following materials:

• Plastics
• Glass
• Ceramics
• Films
• Flexible circuits
• Electronics
• Sensitive Leather

The UV flymarking machine connects directly to the production line, such as a conveyor system, and marks on the fly.

Ultra-High Accuracy: 0.002mm precision for micro-marking, serialization, and traceability.

UV Laser Advantage: Ideal for heat-sensitive materials (plastics, glass, ceramics, PCBs) with minimal thermal damage.

Gantry-Type Design: Stable mechanical structure for consistent marking across large batches.

Longevity & Reliability: JDSU laser source with 20,000-hour lifespan; air-cooled system for 24/7 operation.

User-Friendly: 10-inch control panel with intuitive Windows software; supports multi-format file inputs.

Global Compatibility: Dual voltage support (220V/110V) for international use.

Typical Applications or Industry use:

• Medical devices – syringes, plastic tubes, catheters.
• Electronics & semiconductors – IC chips, PCBs, connectors.
• Pharmaceutical & cosmetic packaging – batch codes, expiry dates, barcodes, and details.
• Plastic bottles & packaging films – date coding, serial numbers, batch numbers.
• Glass products – traceability marks and logos.

Advantages of using a flying marking machine:

• Low maintenance - no consumables, ink, or paper.
• High-speed marking - precise marking, ideal for fast production lines.
• Permanent marking - resistant to water, heat, and abrasion.
• Environmentally friendly - no chemicals.
• Extensive warranty - 18 months warranty from us.
• Easy usage - The Software is easy to use, no need for a laptop. It is built into the screen and can also support USB import.

Technical Specs

General Information

• Name: Flying 5W UV Laser Marking Machine
• Weight: 110 kg
• Marking Size: 110 × 110 mm (Customizable up to 300 x 300mm )
• Configuration: Gantry-type (CNC compatible)
• Processing Methods: Online / Static

Laser System

• Laser Source Brand: JPT
• Laser Type: UV Laser
• Laser Wavelength: 355 nm
• Laser Head: Middle-speed galvanometer
• Lifespan: 20,000 hours (UV laser source)

Marking Performance

• Maximum Marking Speed: 7,000 mm/s
• Etching Speed: 1,300 mm/s
• Marking Speed (rated): Up to 12,000 mm/s
• Marking Depth: 0.01 – 1 mm
• Marking Line Width: Ultra-fine (ideal for micro-text)

Control & Interface

• Screen: 10-inch touch screen
• Language: Customizable
• Control Software: Windows-based (compatible with XP / 7 / 10)
• Transfer Ports: RS232, USB, Network Port

Supported File Formats

• DXF, PLT, JPEG, PNG, BMP
• Additional formats supported: AI, PLT, DXF, BMP

Cooling & Power

• Cooling Method: Air cooling (integrated)
• Power Supply: 220V / 50Hz / 1PH or 110V / 60Hz / 1PH

FAQ

Please note: Please confirm availability.
