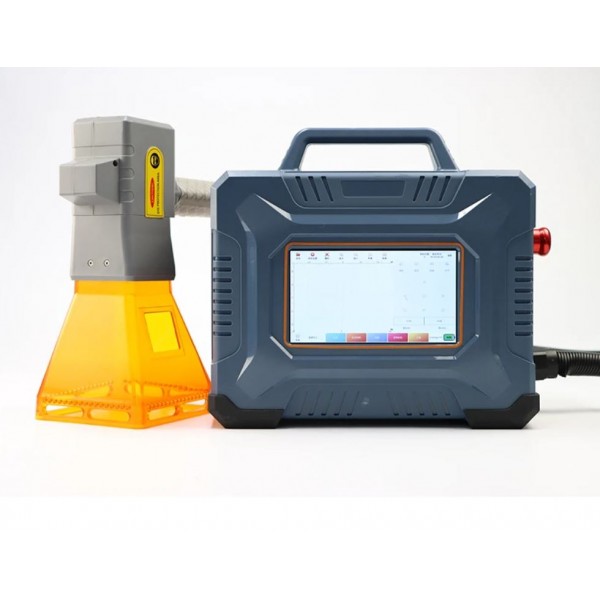

Portable Handheld Fiber Laser Marking Machine 20W/50W

Product Description

Neotronics SA has been in the CNC Laser industry for over 10 years. With unmatched support and price, We are one of the largest CNC stores in South Africa. Join the Neotronics experience!

Top quality portable fiber laser marking machine provides convenience in marking objects at any place at any time. The unit is strong, durable, and most of all reliable. Mark plastics, Tyre, Metal, stainless steel, and so much more.

It supports marking of serial numbers, barcodes and QR codes.

Please note the laser head has been changed to an orange cover which gives better protection and a more sleek and modern design.

The unit needs to be connected by a simple 3pin plug point.

Supports USB port connection for easy upload of designs to the machine, and a LAN interface too.

Product Specs

• Laser Type: Fiber Laser Source ( Raycus / JPT / Max )
• Laser Power Available: 20W/30W/50W
• Laser Wavelength: 1064Nm
• Max Pulse Energy: 0.7mJ
• Adjustable Frequency Range: 1-600Khz
• Printing Mode: High-Precision two dimensional scanning mode
• Marking Speed: <7000mm/s
• Operation Interface: Embedded 7inch touch screen, Linux OS
• Cooling System: Built-in Air Cooling
• Marking Line Type: Both Dot matrix and vector can be used
• Marging range: 60mm x 60mm ( Standard )  / 100 x 100mm Optional (can be arranged on request )
• Positioning Method: Red Light Positioning
• Print Speed: 600 characters/second ( depending on material and print design )
• Languages: English, German
• File Formats Supported: png,jpg,bmp,dxf,plt,svg
• Barcode/QR Code: CODE25, CODE39, CODE49, CODE93, CODE126, CODE128, EAN13, EAN128, PDF417, CODBAR, UPCA, UPCA_CHK, DataMatrix, QRCode
• Input Voltage: 220V/110V
• Maximum Power Consumption: 20W 250W-30W 280W
• Machine Net Weight: 7.8KG
• Power Plug Model: LMB2506
• Type: 213W 25.6V Switching Power Adaptor
• Input Power Plug: AC100-240V
• Output Power: DC25.6V 8.3A
• Adapt to Temperature: 0-40C
• Ambient relative humidity: 30-85 RH (no condensation)
• Appearance Size: 330mm x 280mm x 200mm
• Marking Type: QR Code, Barcode, Date, Logo, Pattern, etc

Application Use

Product Package

FAQ

1. Does the machine use batteries to operate?

No it does not use batteries, it connects via a plug point. Allowing longer working time and longer marking durations.

2. What power options are available for the portable fiber marking machine?

20W and 30W is for light marking such as stainless steel, soft metals. 50W is suitable for aluminium and hard industrial metals.

3. Does the machine come with software?

Yes the interface is a touchscreen panel with pre-loaded sofware.

4. Can you upload a design via USB to the machine?

Yes this is possible.

5. What size lens comes with the machine?

The machine comes with a 100mm Fiber Lens, we also offer 50mm lens and 150mm lens.

6. When would I need a larger lens size?

This depends on the size of the marking or logo size, sometimes if the logo size is larger, then a larger lens is required.

7. What is the warranty on the machine?

We offer a 1 year warranty of the machine from the date of delivery.

8. Do you offer support on the machine after purchase?

Yes we do offer lifetime support on all our products. Simple contact us and we will give you top class support.

Please confirm stock Availability, delivery time 2-4 weeks.
