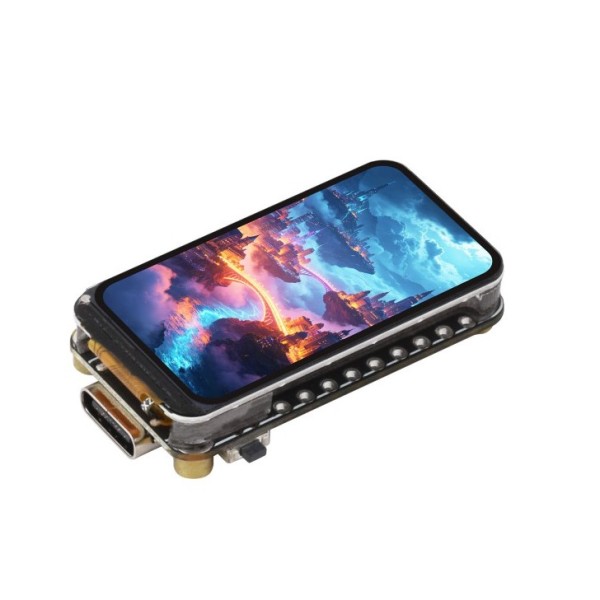

ESP32-C3-LCD-1.47-M

Product Description

The ESP32-C3-LCD-1.47-M is a compact development board that combines the powerful ESP32-C3 RISC-V microcontroller with a vibrant 1.47-inch colour LCD, making it ideal for interactive embedded applications and IoT projects. Designed for makers, engineers, and developers, this board provides built-in 2.4GHz Wi-Fi and Bluetooth 5 (BLE) connectivity, enabling seamless communication with cloud platforms, mobile devices, and smart home systems. The integrated display allows you to create intuitive user interfaces, live dashboards, status monitors, and portable control panels without requiring additional hardware.

Compatible with the ESP-IDF development framework and the Arduino IDE, the ESP32-C3-LCD-1.47-M offers a flexible platform for rapid prototyping and commercial product development.

Product Features

• Adopts ESP32-C3FH4 main control chip, equipped with 32-bit RISC-V single-core low-power SoC, up to 160MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) wireless communication
• Built-in 400KB Static RAM and 384KB ROM, with onboard 4MB Flash
• Onboard ceramic antenna for easy integration into custom baseboards or embedded devices
• Integrated USB full-speed serial controller for easy program downloading and debugging
• Adapting 15 × GPIO pins for flexible expansion of various peripheral functions
• Provides rich peripheral resources, including 3 × SPI, 1 × I2C, 2 × UART, 1 × I2S, 2 × ADC, and other interfaces

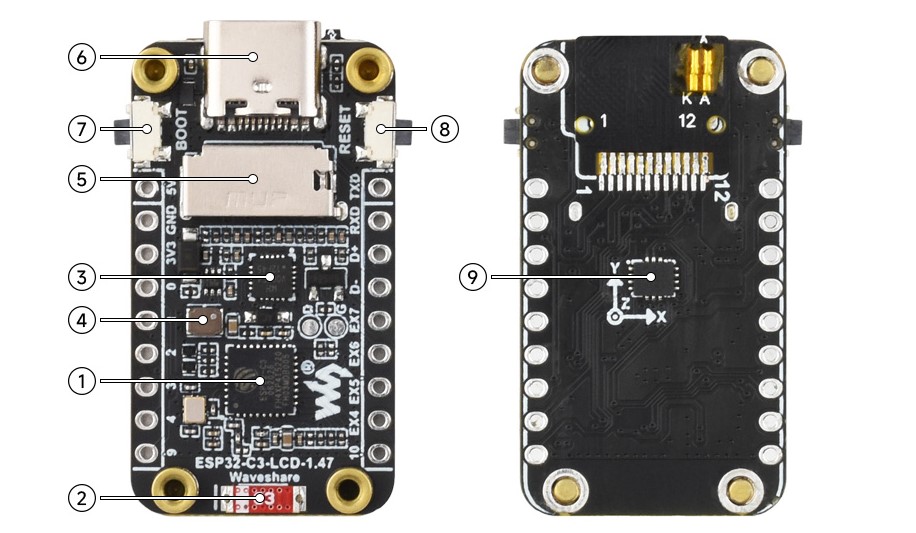

What is onboard?

1. ESP32-C3FH4, the low-power SoC with a 32-bit single-core RISC-V processor, up to 160MHz main frequency

2. Onboard antenna

3. CH32V003F4U6 IO expander works with the main controller to enable peripheral control and provides expansion pins

4. MP1605GTF-Z DC-DC power supply chip

5. TF card slot

6. Type-C port for power supply, programming, and debugging

7. BOOT button

8. RESET button

9. QMI8658 6-Axis IMU

Equipped with a 32-bit single-core RISC-V processor, running at up to 160MHz, with secure encryption and high-temperature resistance.
