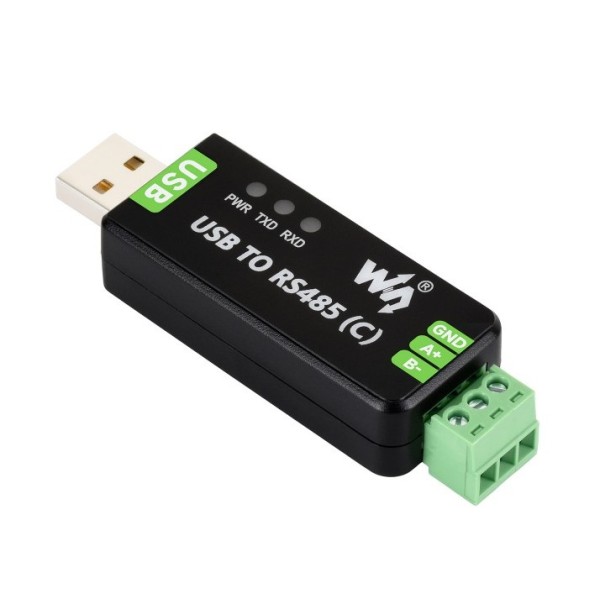

USB TO RS485 (C)

Product Description

The USB to RS485 (C) Converter provides a simple and reliable way to connect RS485 serial devices to modern computers and laptops equipped with a USB Type-C port. Designed for industrial communication, automation systems, and embedded development, this adapter delivers stable, high-speed data transmission for a wide range of applications. Ideal for use with PLCs, Modbus networks, industrial controllers, sensors, meters, CNC equipment, and embedded systems, the converter enables seamless communication between your PC and RS485-compatible devices. Its compact, plug-and-play design makes it easy to carry and deploy in the field, workshop, or office.

Whether you're troubleshooting industrial equipment, configuring automation systems, or developing embedded applications, the USB to RS485 (Type-C) Converter offers dependable performance and broad compatibility.

Product Specs

• PRODUCT TYPE: Industrial-grade isolated USB to RS485 converter
• Baud rate: FT232RNL chip 300bps ~ 512000bps
• Host port: USB
• Device port: RS485
• Operating voltage: 5V
• Connector: USB-A
• Protection: 200mA resettable fuses, ESD protection
• Transmission distance: Approx. 5m
• Connector: Screw terminal
• Pins: A+, B-, GND
• Direction control: Hardware automatic control
• Protection: 600W Lightningproof, anti-surge, and 15KV ESD protection (onboard 120R balancing resistor)
• Isolation voltage: Up to 2.5KV opto-isolation
• Transmission distance: Approx. 1.2km (low rate)

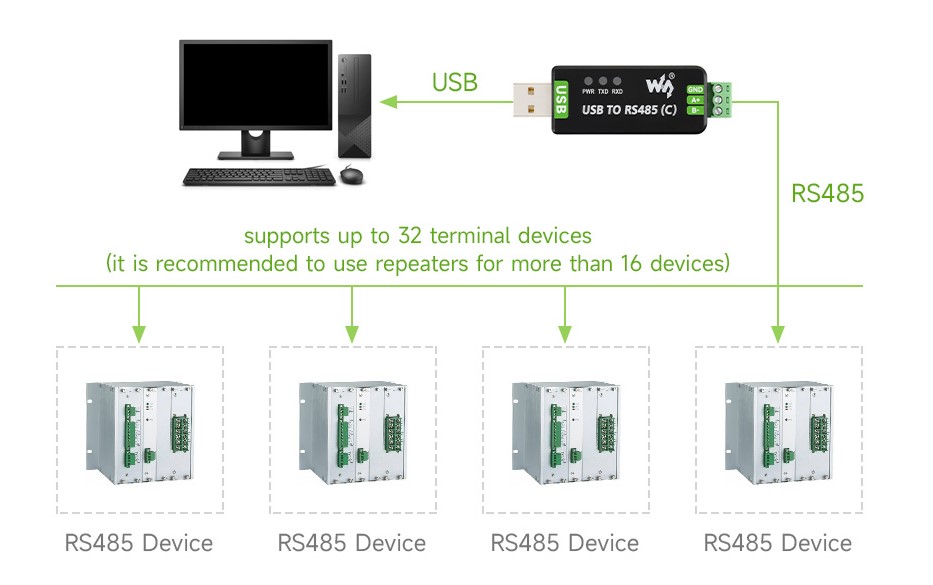

• Transmission mode: Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
• PWR: Red power indicator, lights up when there is USB connection and voltage is detected
• TXD: Red TX indicator, lights up when the USB port sends data
• RXD: Red RX indicator, lights up when the device port sends data back
• Temperature: -40℃ ~ 85℃
• Humidity: 5%RH ~ 95%RH
• Operating system: Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7 / XP

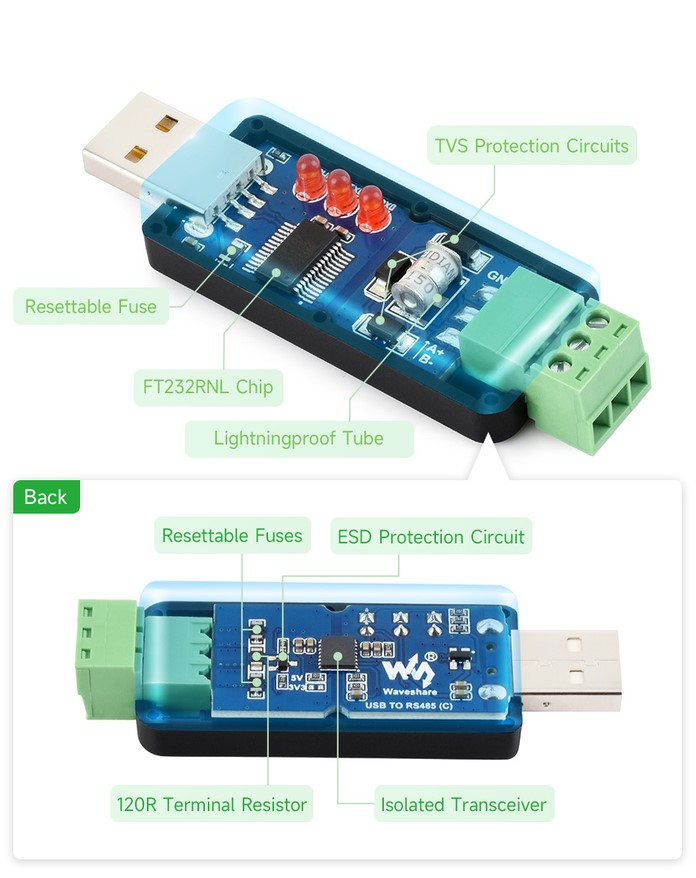

Onboard original FT232RNL chip, providing better stability and compatibility, built-in Lightningproof tube, resettable fuses, ESD and TVS protection circuits, etc.

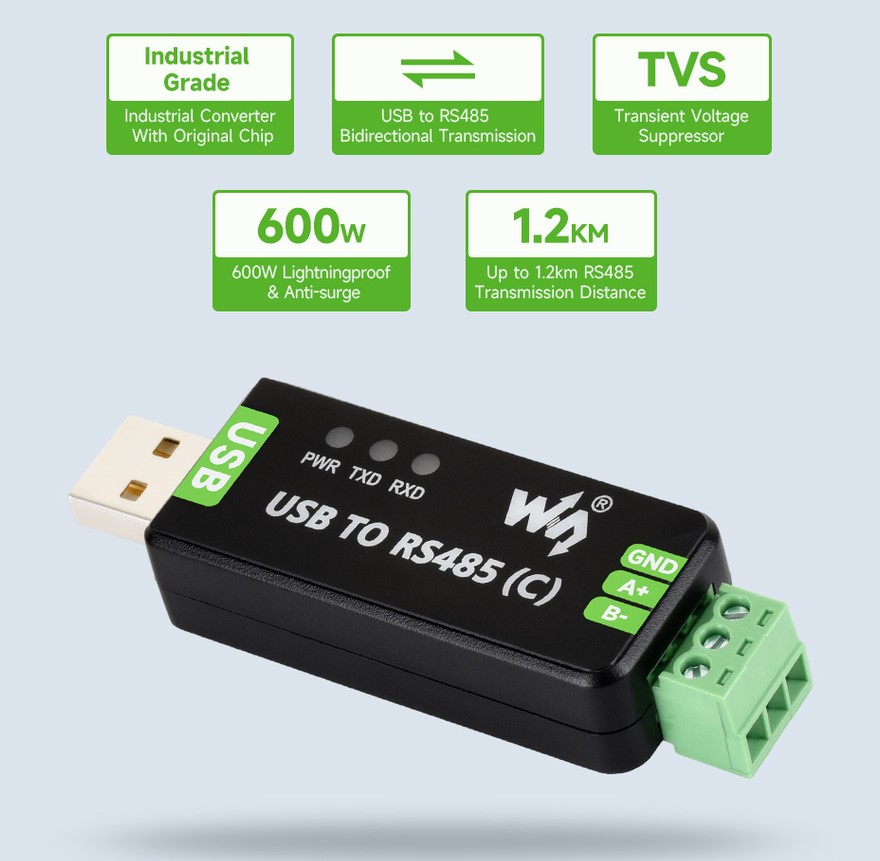

Product Features

• Supports USB to RS485 bidirectional conversion
• Onboard original FT232RNL chip, enabling high-speed, stable, and reliable communication with excellent compatibility
• Onboard isolated transceiver, integrated electrical isolation and ESD protection, effectively improving communication stability and anti-interference capabilities in industrial environments
• Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
• Onboard resettable fuses and protection diodes ensure stable current/voltage outputs, provide over-current/over-voltage protection, improves shock proof performance
• Onboard 3 LEDs for indicating the power and transceiver status

The USB signal can be converted into a balanced differential RS485 signal, and the transmission rate is stable. The reliable speed is 300bps ~ 512000bps, the transmission distance is about 1.2km for RS485, and about 5 meters for USB
