ESP32-S3 4inch Display Development Board - 480×480,32-Bit LX7 Dual-Core Processor-Supports WiFi & Bluetooth, With Onboard Antenna, ESP32 With Display

Product Description

ESP32-S3-LCD-4 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates 16MB Flash and 8MB PSRAM. Onboard 4inch 480 × 480 LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces to quickly develop the HMI of ESP32-S3, suitable for scenarios such as smart control panel, home gateway, intelligent interactive panel, industrial control, and smart lighting control.

A powerful and feature-rich platform designed for IoT, embedded display applications, and smart device development. Powered by a 32-bit LX7 dual-core processor, this board delivers high-performance computing while maintaining energy efficiency, making it ideal for both real-time control and graphical interface tasks.

Featuring a vibrant 4-inch 480×480 resolution LCD, it provides crisp visuals for user interfaces, dashboards, and more. The board comes with integrated WiFi and Bluetooth 5.0 capabilities, allowing seamless wireless communication for connected devices and smart applications. With an onboard antenna, compact design, and extensive I/O options, the ESP32-S3 development board simplifies prototyping and deployment. It’s the perfect solution for developers building next-gen smart home devices, portable monitors, industrial controls, or touchscreen IoT interfaces.

This is with Touch Function.

Product Features

• Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

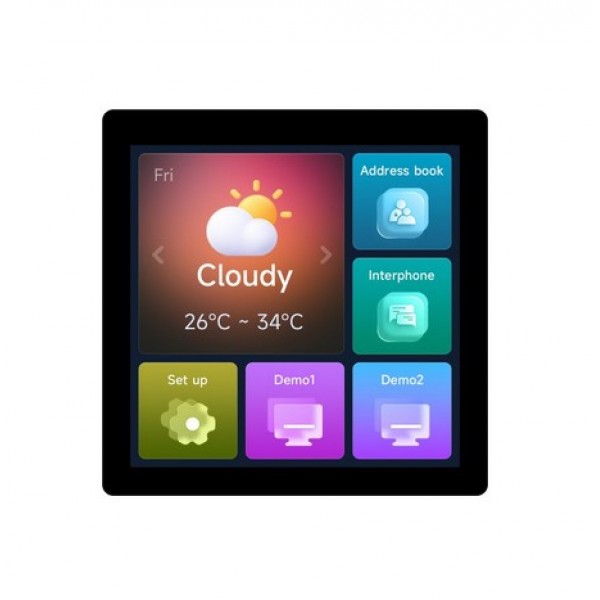

• Onboard 4inch LCD display, 480×480 resolution, 65K color
• Spports capacitive touch control via I2C interface, 5-point touch with interrupt support (for touch version only)
• Onboard CAN, RS485, I2C interface and TF card slot, and integrates full-speed USB port
• Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios

Excellent display performance, 160° wide viewing angle

Optional for touch function via I2C interface, supports 5-point touch for flexible operation and smooth multi-point UI interaction

Supports 2.4 GHz Wi-Fi (802.11 B/G/N) and Bluetooth 5 (LE), Onboard Antenna

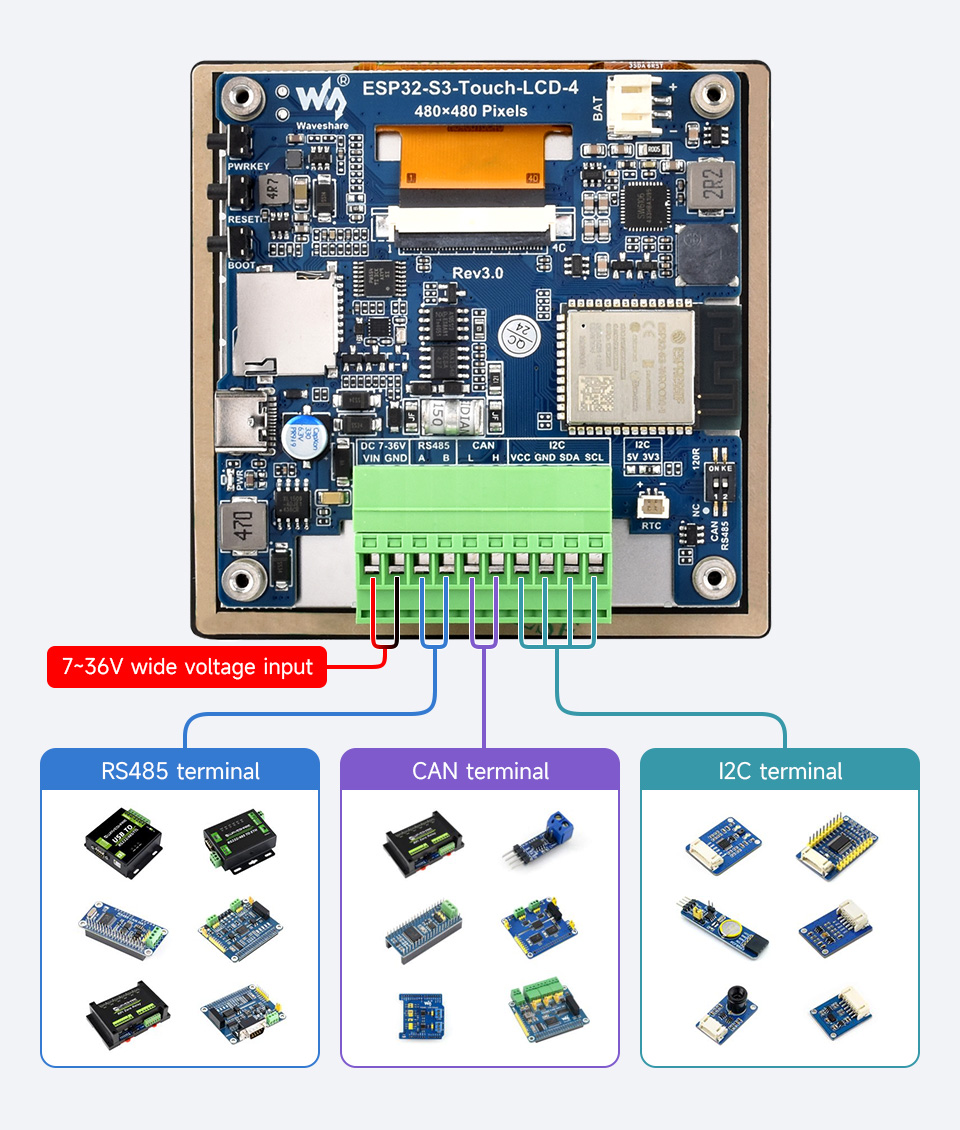

Supports the expansion of multiple peripherals via CAN, RS485, and I2C interfaces

Please note: Locally stocked. Available for immediate shipping.
