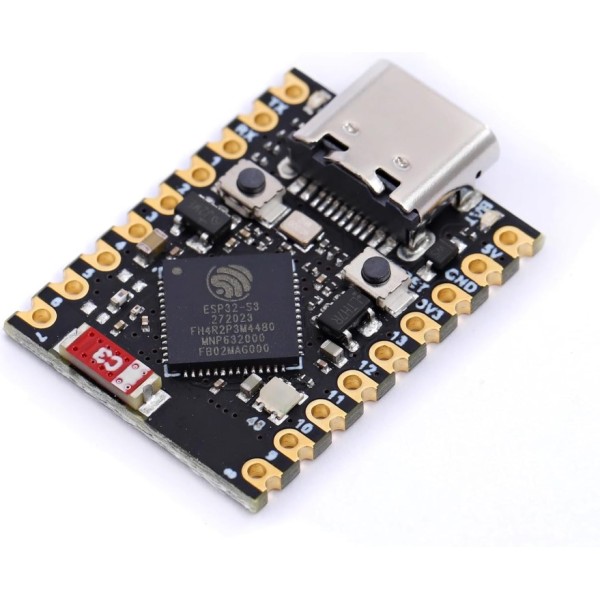

ESP32-S3 SuperMini Development Board

Product Description

The ESP32-S3 SuperMini is a compact yet powerful IoT development board, built on the Espressif ESP32-S3 WiFi/Bluetooth dual-mode chip. With a dual-core Xtensa LX7 processor running up to 240 MHz, it delivers high-performance processing for embedded projects and IoT applications.

Enjoy seamless wireless connectivity with support for WiFi 802.11b/g/n and Bluetooth 5 (LE). The built-in PCB antenna ensures reliable signal strength without the need for an external antenna, making integration effortless.

Featuring 512 KB SRAM and 4 MB flash memory, this ultra-compact board (22.52 x 18 mm) provides ample space for your firmware and applications, perfect for embedding into small or space-constrained projects.

Product Specs

• Processor: ‎160 MHz
• RAM: LPDDR
• Wireless Type: 802.11b, Bluetooth
• Brand: Teyleten Robot
• Series: ESP32S3SuperMini
• Operating System: FreeRTOS
• Item Weight: 0.317 ounces
• Package Dimensions: ‎4.72 x 3.03 x 0.31 inches
• Processor Brand: Espressif
• Number of Processors: ‎1
• Manufacturer: ‎Teyleten Robot
• ASIN: B0D47HBFDY

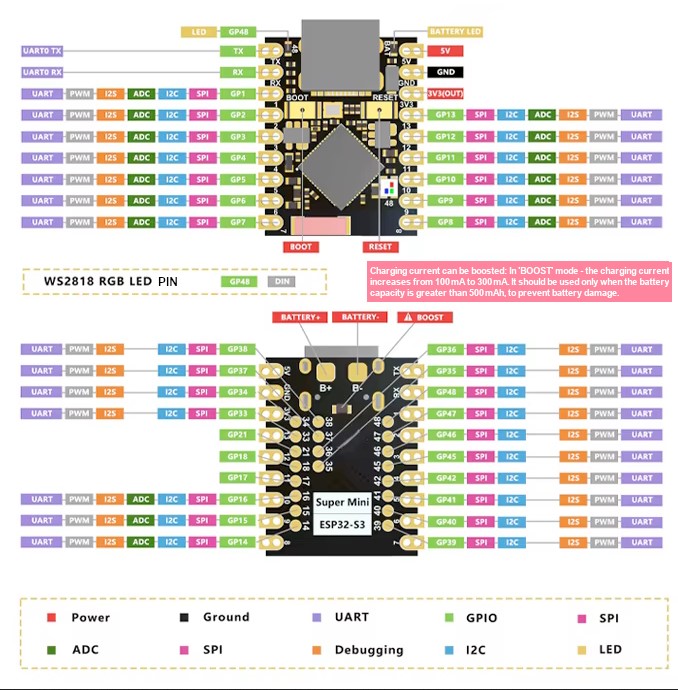

Pinout Diagram

Product Features

• ESP32S3SuperMini is positioned as a high-performance, low-power, cost-effective IoT mini development board for low-power IoT applications and wireless wearable applications
• Powerful CPU: ESP32-S3, 32-bit single-core processor running at 160 MHz.
• WiFi: 802.11b/g/n protocol, 2.4GhHz, supports Station mode, SoftAP mode, SoftAP+Station mode, and mixed mode.
• Ultra-low power consumption: deep sleep power consumption of about 43μA
• Rich board resources: 400KB, 384KB ROM 4Mflash built-in.
• Ultra-small size: as small as a thumb (22.52x18mm) Classic form factor for wearables and small projects.
• Reliable security features: cryptographic hardware accelerator with support for AES-128/256, hash, RSA, HMAC, digital signature and secure boot
• Rich interfaces: 1xI2C, 1xSPI, 2xUART, 11xGPIO(PWM), 4xADC

Please note: Locally Stocked. Available for Immediate Shipping.
