Stepper Motor NEMA 34 - 10.5Nm - 1.8 Degree

Product Description

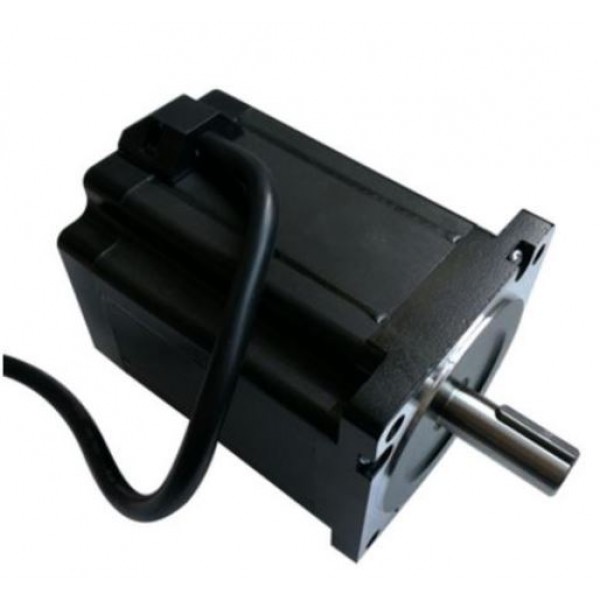

This is the Stepper Motor NEMA 34 - 10.5Nm - 1.8 Degree. A very powerful motor.

Product Specs:

• Model Number: 34HS54-37B2
• Phase: 2
• Holding Torque: 1600oZ
• Certification: ISO certified
• Step Angle(degrees): 1.8
• Current / Phase: 3.5A
• Frame Size:NEMA34
• Phase:2 Phase
• Step Angle:1.8 degree
• Current:3.5A/phase
• Rated Voltage:5.6V
• Resistance:1.6 Ohm/phase
• Inductance:22mH/phase
• Holding torque:1600oz-in (10.5N.m)
• Detent torque:24.5N.cm
• Rotor inertia:3600g.cm⊃2;
• Number of wire leads:4 (Red A+ ,Green A- ,Yellow B+ ,Blue B-)
• Weight:6kg
• Length:151mm
• Front shaft length 37mm
• The diameter for motor shaft is 14mm

^{Please confirm Availability.}
