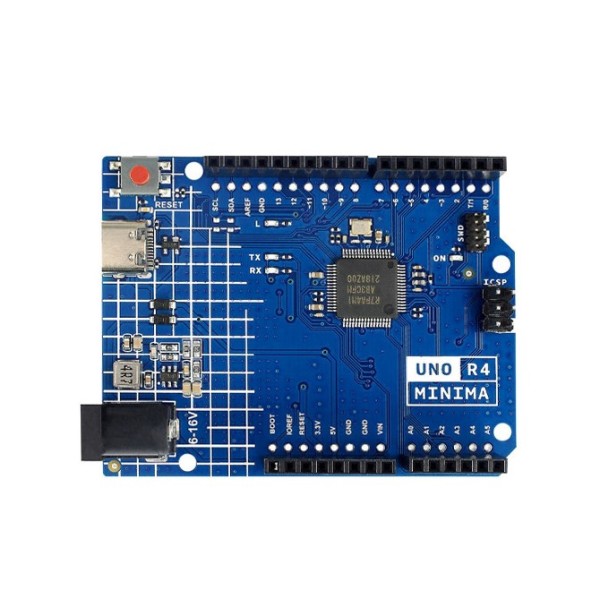

UNO R4 Minima Board ( Generic )

Product Description

The Arduino UNO R4 Minima represents the next generation of the classic UNO platform, now powered by a high-performance 32-bit microcontroller. At its core is the Renesas RA4M1 (R7FA4M1AB3CFM), featuring a 48 MHz Arm® Cortex®-M4 processor for improved speed, efficiency, and reliability across a wide range of applications. With expanded memory compared to earlier UNO models, the R4 Minima offers 256 kB Flash, 32 kB SRAM, and 8 kB EEPROM, giving developers more room for advanced code and data storage.

Operating at 5V DC, the UNO R4 Minima maintains hardware compatibility with the traditional UNO form factor, allowing you to safely use most existing 5V shields and accessories. While hardware compatibility is retained, software adjustments may be required due to the updated microcontroller architecture.

Compact, powerful, and reliable, the UNO R4 Minima is an excellent choice for embedded systems, prototyping, automation, and electronics development projects.

Product Specs

• Brand: Arduino Clone (Not Original Arduino)
• Manufacturer: Unknown
• Model No: UNO R4 Minima
• Microcontroller: Renesas R7FA4M1AB3CFM (48MHz Arm® Cortex®-M4 Core with a floating point unit
• Fash Memory (Code): 256kB
• SRAM: 32kB
• Flash Memory (Data / EEPROM): 8kB
• Input Voltage Range (DC Jack): 4V ~ 18VDC
• MCU Operating Voltage: 5VDC
• USB Connector Type: Female USB Type-C Socket
• Digital I/O Pins: 14 – D0 to D13
• Analog Input Pins: 6 – A0 to A5
• PWM Output Pins: 6 – D3,D5,D6,D9,D10,D11
• Peripherals:
• Capacitive Touch Sensing Unit
• USB 2.0 Full Speed Module (HID Support)
• RTC (Real-Time Clock)
• Up to 14-bit ADC
• Up to 12-bit DAC
• Operational Amplifier
• 1x CAN Interface (D4,D5 – External transceiver required)
• 1x SPI (D10-D13 / ICSP Header)
• 1x I2C (A4,A5 / SDA,SCL)
• 1x UART (D0,D1)
• Operating Temperature Range: -40°C to +85°C
• Dimensions: ~(68.58mm x 53.34mm x 15mm)

Product Resources

Original Arduino UNO R4 Minima Datasheet

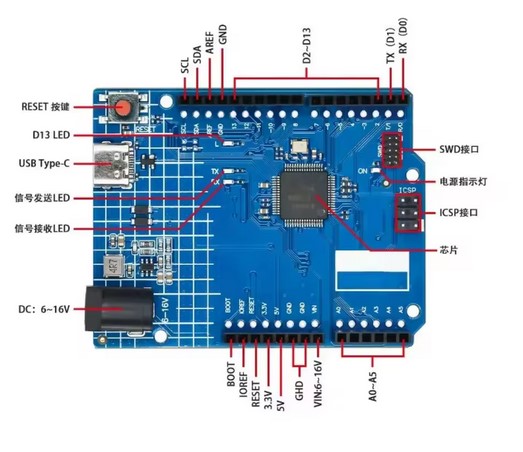

Original Arduino UNO R4 Minima Pinout

Original Arduino UNO R4 Minima Documentation Page

Renesas RA4M1 Product Page
