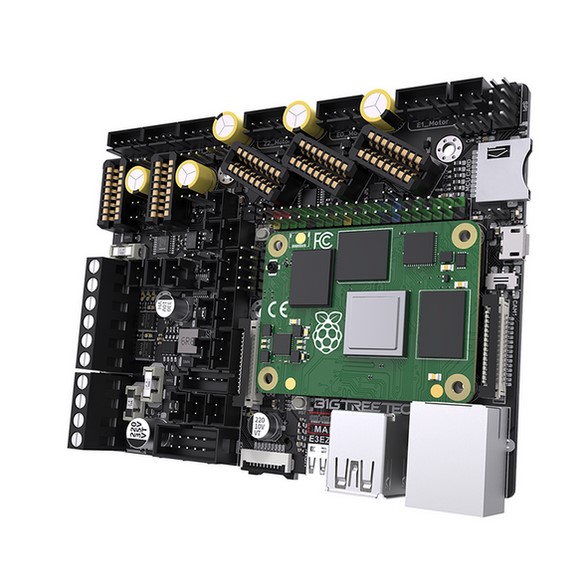

BIGTREETECH Manta E3EZ V1.0 for Ender 3

Product Description

The BIGTREETECH MANTA E3EZ V1.0 is a motherboard developed by the 3D printing team of Shenzhen Bigtree Technology Co. to help you to take your Ender 3 to the next level whether that means running Klipper or even Marlin with all of the latest features. This is our first motherboard that incorporates “Manta” technology (B2B connectors for the CB1 or CM4 modules) and “EZ” technology (the ability to use the latest EZ drivers). Simply plug in the CB1 core board and EZ drivers on the motherboard to upgrade your Ender 3 printer to run Klipper. Due to there being no need for an external raspberry pi the Manta series saves you messy cabling and results in a highly compact implementation.

Product Specs

• MCU: ARM Cortex-M0+ STM32G0B1RE 64MHz
• Motherboard Power Supply Voltage: DC12V-DC24V
• Motor Supply Voltage: DC12V-DC56V
• Logic Voltage: DC 3.3V
• Heater Connection: Heated Bed (HB), Heater Cartridge (HE0, HE1)
• HB Port Max Current: 10A Continuous, 11A Instantaneous
• Heater Cartridge Max Current: 5A Continuous, 6A Instantaneous
• Fan Port: 3 x PWM, 2 x Always On
• Fan Port Max Current: 1A Continuous, 1.5A Instantaneous
• Overall Max Current(Heater Cartridge+Driver+All Fans): <10A
• Expansion Port: BLTouch, PS-ON, PWR-DET, Fil-DET, RGB, CAN FD, SPI
• Motor Driver: Support EZ5160, EZ2209, EZ2208, EZ2225, EZ2226, EZ2130, EZ6609…
• Driver Mode: SPI, UART
• Motor Socket: X, Y, Z (Dual Z Axes), E0, E1. 5 Channels in Total
• Thermistor: 3 x 100K NTC
• Display: SPI Touchscreen, LCD Display
• PC Connection: MCU
• Interface: USB 2.0x2, LAN, DSI, CSI, SPI, 40Pin-GPIO, HDMI0, SOCCard, MCU-Card
• Supported Kinematics: Cartesian, Delta, Kossel, Ultimaker, CoreXYMicro USB

Product Features

• Running Klipper or OctoPrint.
• Board to board connection, compatible with CB1/CM4.
• Perfectly fit Ender 3.
• New technology--work with EZ driver.
• Rich interface - suitable for 3d printer DIY.
