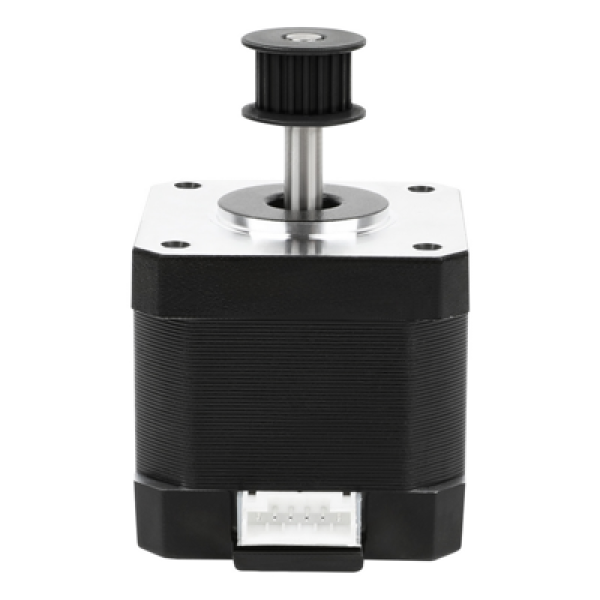

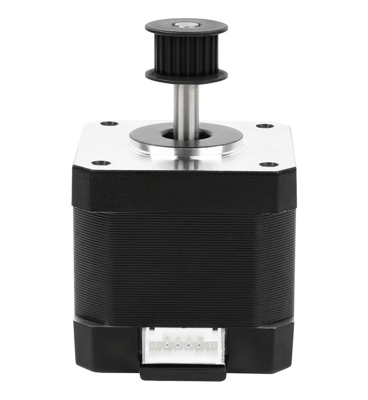

Creality K1 Max 42-48 Stepper Motor

Product Description

The Creality K1 Max 42-48 Stepper Motor is an original, high-precision NEMA-17 stepper motor engineered specifically for Creality’s K1 Max series 3D printers. Designed for consistent motion control, this motor powers the X, Y, and Z axes to deliver accurate positioning and smooth, reliable prints. It’s ideal as a factory replacement or quality spare part when servicing or repairing your printer.

Product Specs

• Stepper Type: Bipolar NEMA-17 motor.
• Dimensions: 42 mm wide × 48 mm long.
• Step Angle: 1.8° (~200 steps/rev).
• Rated Current/Voltage: Typically ~1 A and suitable for 12–24 V DC systems.
• Shaft: Standard 5 mm diameter, compatible with GT2 pulleys/belts

Product Features

• Precision Movement: 1.8° step angle (200 steps per revolution) gives fine positional control, essential for detailed 3D printing.
• Standard NEMA-17 Form Factor: Compact 42 × 48 mm body fits perfectly in the K1 Max motion system.
• Reliable Performance: Designed to work with the printer’s stepper drivers for smooth, repeatable motion with minimal noise and vibration.
• Robust Construction: Metal gearbox and shaft built for durability and long-term use under the stresses of continuous motion.
• Plug-and-Play Compatibility: Simple to replace — just remove the old motor and mount the new one with no modification required.

Please note: Locally Stocked. Available for Immediate Shipping
