Longer Ray5 10W/20W Laser Engraver and Cutter Machine

Product Description

Neotronics SA has been in the CNC Laser industry for over 10 years. With unmatched support and price, we're one of the largest CNC Laser stores in South Africa. Purchasing from Neotronics SA will give you free access to the following:

• Local Lifetime Support ( over 10 years of technical support from our team )
• 1 Year Warranty ( Full end to end )
• Longer Ray5 Laser Engraver machine 10W or 20W
• Smart Air Assist
• Safety Glasses
• USB Type-C High-powered cable
• Free Lightburn Training
• Free Lightburn design files from our Laser Engraving Art Studio
• Opportunity to join our large WhatsApp and Facebook community group filled with creative minds and artists

Join the Neotronics experience!

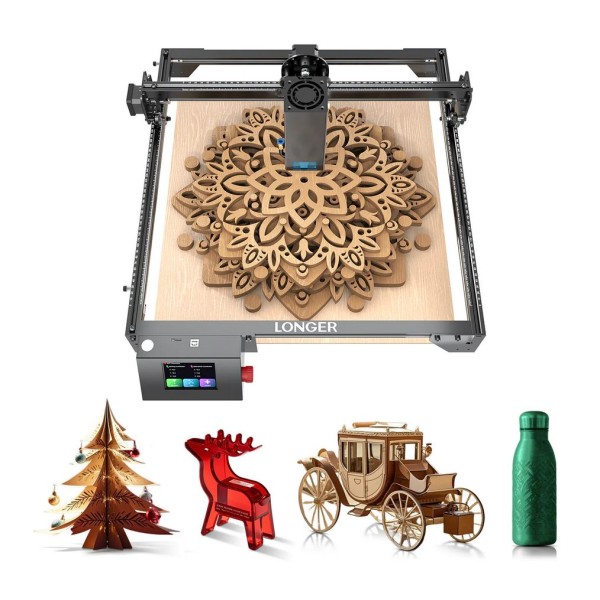

The Longer Ray5 10W/20W Laser Engraver and Cutter Machine is a powerful, precision-driven solution designed for makers, small businesses, and professionals. Built with a robust metal frame and advanced motion system, the Ray5 delivers fast, accurate engraving and clean cutting results across a wide range of materials.

Available in 10W and 20W laser power options, the Ray5 effortlessly engraves and cuts wood, leather, acrylic, rubber, fabric, paper, and coated metals. Its high-speed engraving capability ensures detailed results while maintaining consistency, making it ideal for signage, crafts, custom products, and branding applications.

The Ray5 features a user-friendly touchscreen interface, offline engraving support, and broad software compatibility with LightBurn and LaserGRBL, allowing for flexible workflow options. Enhanced safety features such as emergency stop, flame detection, and motion protection provide peace of mind during operation. Whether you’re starting out or scaling production, the Longer Ray5 offers reliability, precision, and performance in a compact, efficient laser engraving solution.

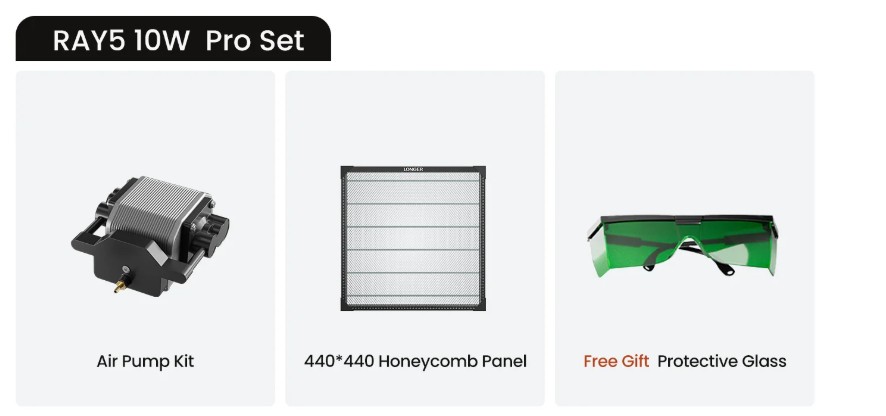

Please note: Should you need the air assist kit, including the honeycomb panel, please select the pro set from the drop-down list.

The Pro set includes:

Product Specs

• Laser Technology: Diode Laser
• Working Area:400 x 400mm
• Laser Wavelength: 450nm
• Focus Type: Fixed Focus - 30mm Focal Range
• Spot Size at Optimal Focus: 0.06 x 0.06mm
• Optical Output Power: 10W
• Z Axis-Height Range: Up to 47mm
• Engraving / Cutting Speed: 40 - 10000mm/min
• Engraver Output: DC12V 5A
• Engraver Input: AC110 - 240V
• Software: LaserGRBL, compatible with LightBurn
• Connection: USB / TF Card / Wifi
• Laser Engraver Size: 61 x 67 x 20cm (24 x 26 x 0.79inch)
• Package Size: 59 X 31 X 15cm/23.3 X 12.2 X 5.9Inch
• Gross weight: 4.9KG

Product Features

• Exceptional Versatility: Interchangeable laser modules (30W/20W/10W/5W/2W IR) allow you to work with a wide variety of materials.
• Perfect for Beginners: With an easy-to-assemble design, this tool offers precision engraving up to 0.01 mm and speeds of up to 24,000 mm per minute, making it ideal for newcomers.
• User-Friendly App Control: Compatible with Lightburn, LaserGRBL, and LaserBurn for seamless operation.

Product Package



FAQ

• RAY5 5W maximum cutting capacity is 8mm Acrylic
• RAY5 10W maximum cutting capacity is 20mm Basswood and 30mm Acrylic
• RAY5 20W maximum cutting capacity is 25mm Pine wood and 35mm Acrylic, 0.05mm stainless steel

3. Can you use RAY5 only on a computer?

The RAY5 comes equipped with a 3.5-inch touch screen, offering seamless navigation and control. It supports three connection methods: USB, TF card, and WIFI offline mode. Additionally, the mobile app "MKSLaser," available for both Android and iOS devices, provides users with the convenience of controlling the Longer Ray5 directly from their smartphones. Beyond mere control, this app enables users to edit images and adjust engraving parameters on the go, ensuring flexibility and efficiency in their engraving tasks.

4. Is the Longer Ray5 safe to use?

Absolutely. It features an emergency stop button, flame detection, motion protection, and limit switches to ensure safe operation.

5. Is the Longer Ray5 suitable for beginners?

Yes. Its intuitive controls, touchscreen operation, and software compatibility make it beginner-friendly while still powerful enough for professional use.
