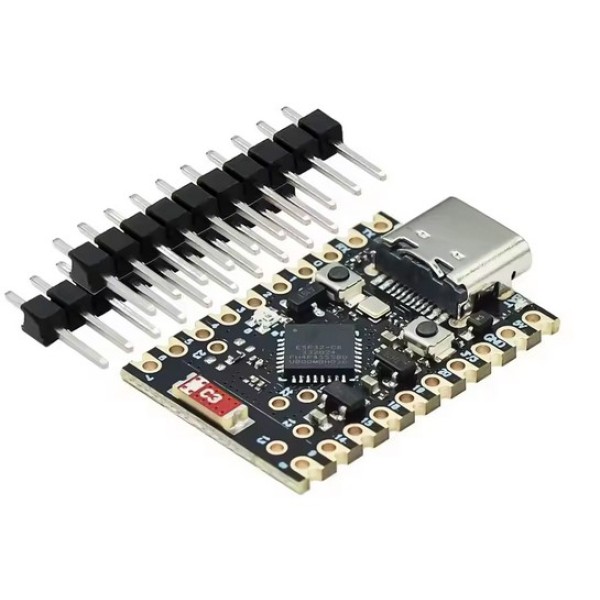

ESP32-C6 SuperMini Development Board

Product Description

The ESP32-C6 SuperMini Development Board is a compact and high-performance microcontroller designed for modern IoT and embedded applications. Built on the Espressif ESP32-C6 chip, it features a powerful dual-core processor and supports Wi-Fi 6 and Bluetooth 5.2, providing fast, reliable, and energy-efficient wireless connectivity.

Its ultra-compact size makes it perfect for space-constrained projects, while onboard memory and storage allow for smooth execution of firmware and applications. With a built-in PCB antenna, the board ensures strong signal reception without the need for external components.

Ideal for developers, hobbyists, and small businesses, the ESP32-C6 SuperMini empowers you to create next-generation IoT devices, smart home systems, and embedded solutions with ease.

Product Specs

• Chipset: Espressif ESP32-C6
• Processor: Dual-core RISC-V, up to 160 MHz
• Wireless Connectivity:
• Wi-Fi 6 (802.11ax)
• Bluetooth 5.2 (LE)
• Memory: 400 KB SRAM
• Flash Storage: 4 MB

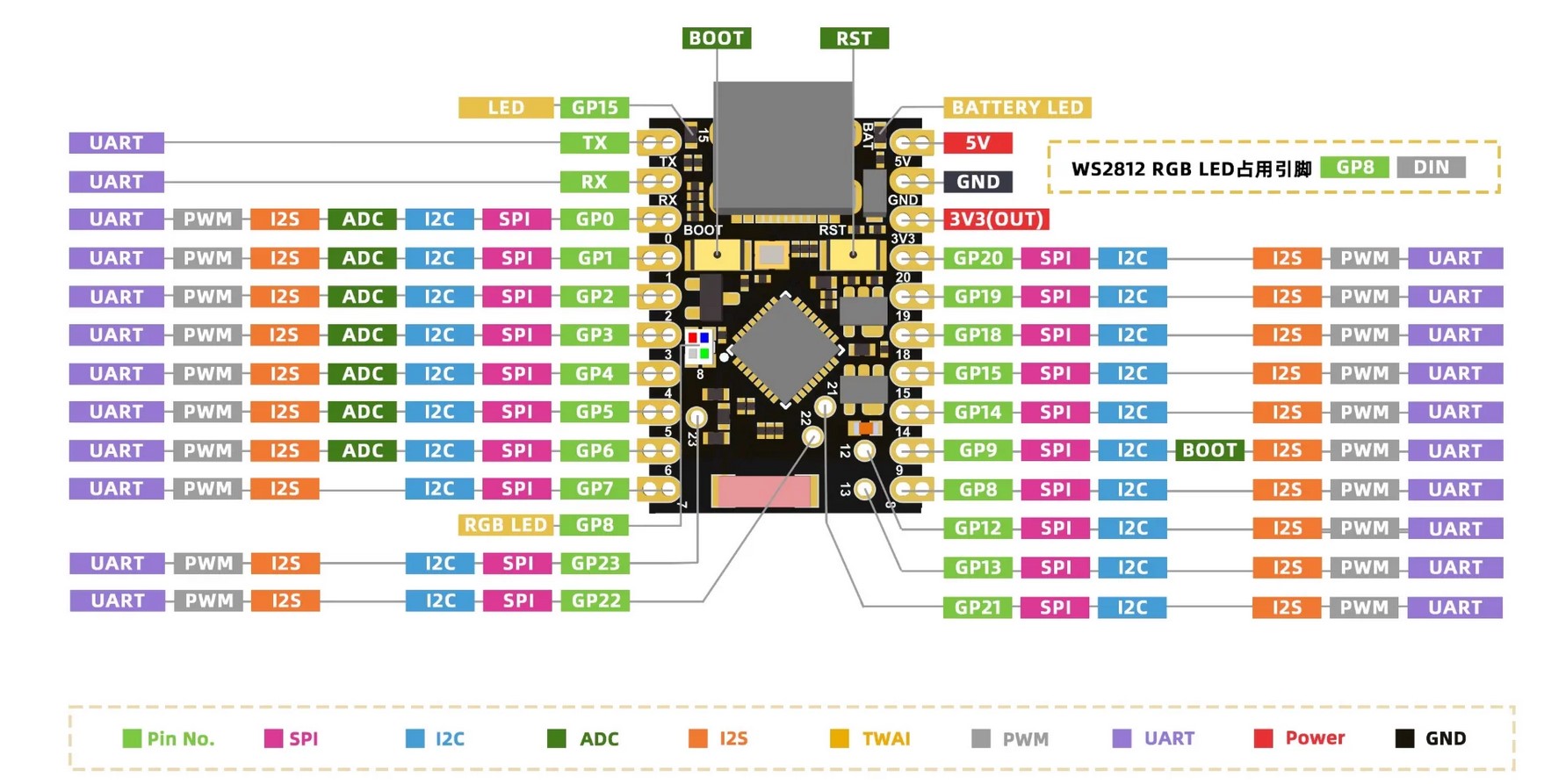

• GPIO Pins: [Specify number if known, e.g., 22 programmable GPIOs]
• Antenna: Built-in PCB antenna
• Power Supply: 3.3V (via USB or external power)

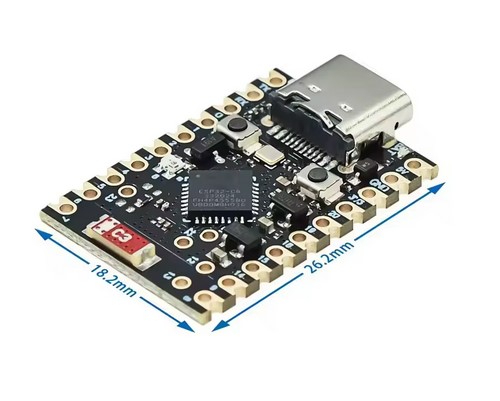

• Dimensions: Ultra-compact [specify, e.g., 22.5 x 18 mm]
• Interfaces: UART, SPI, I²C, PWM, ADC
• Operating Temperature: -40°C to 85°C
• Ideal Applications: IoT devices, smart home projects, embedded systems, prototyping

Product Features

• Development Board: ideal for learning and prototyping.
• IoT Ready: supports wireless connectivity for smart devices.
• SuperMini: compact design for easy integration.
• Microcontroller: advanced processing for smart home applications.
• ESP32 C6: powerful microcontroller for IoT projects.

Please note: Locally stocked. Available for Immediate Shipping.
