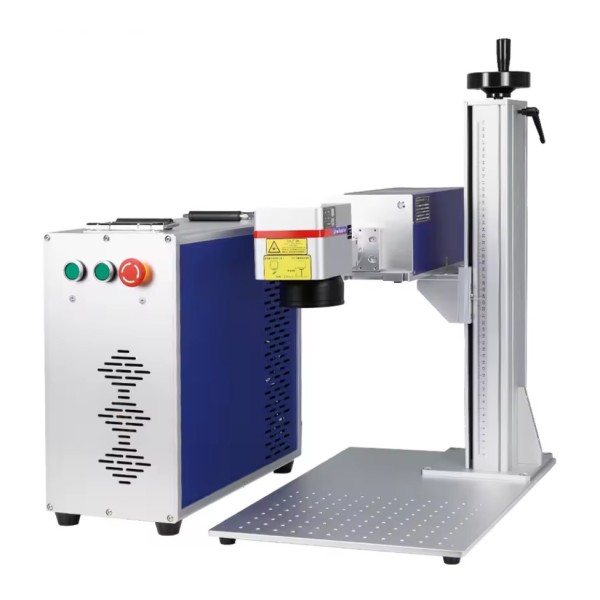

UV Laser Marking Machine CRS-10W

Product Description

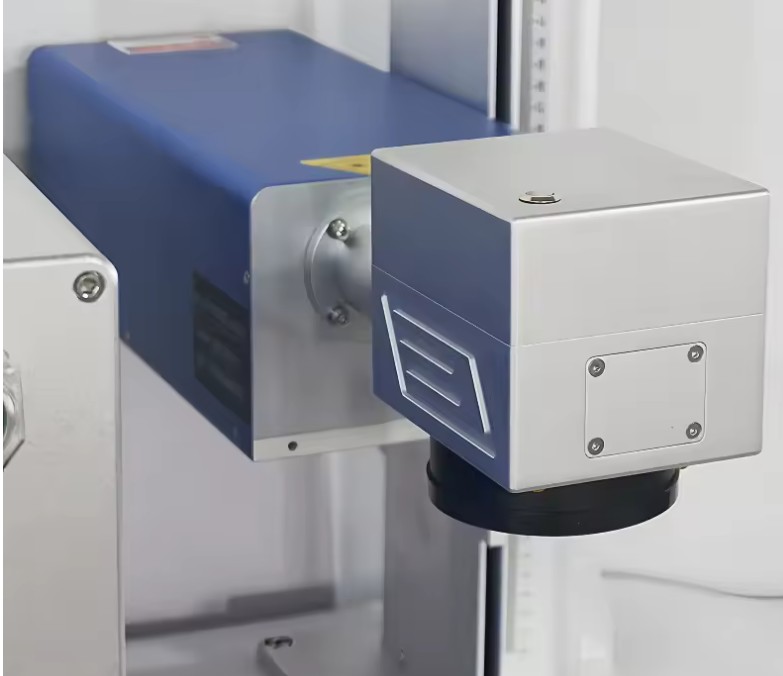

Take your marking to the next level with the CRS UV Laser marker machine. The CRS 10W is a 355nm ultraviolet laser marking machine built around a CRS-branded pulsed UV laser source (model CRS-355-10). It uses an advanced resonator design and laser control technology to achieve excellent beam quality and narrow laser pulse width under high power operation, with special intracavity thermal compensation and harmonic conversion technology for efficient and stable frequency and power.

Video below for demonstration purposes only:

Whether you're a small-scale manufacturer, a precision engineering workshop, or a creative artisan working with delicate materials, the UV Laser Marking Machine 10W delivers unmatched accuracy and versatility. Designed specifically for both metallic and non-metallic surfaces, this compact yet powerful laser system is engineered to meet the demands of modern industrial and craft applications. From serial numbers on stainless steel components to intricate designs on acrylic signage, this machine ensures permanent, high-contrast markings without damaging the substrate or causing any burn.

Why Choose a UV Laser Marking Machine for Precision Engraving?

One of the most common questions among workshop owners, product specialists and product developers is: How can I mark delicate materials like glass or acrylic without causing cracks or discoloration? The answer lies in the unique properties of ultraviolet (UV) laser technology. Unlike traditional fiber or CO2 lasers, UV lasers operate at a shorter wavelength (typically 355nm), which allows for minimal thermal impact on the material. This means the laser can etch fine details without melting, warping, or creating heat-affected zones—critical when working with sensitive materials such as polycarbonate, PET, or tempered glass.

• Laser power:10W
• Working area:300 x 300mm, best results use 110mm or 70mm for internal crystal carving
• Laser brand: CRS
• Galvanometer brand: CRS
• Field lens brand: JGZ brand
• Dual red light positioning
• Motherboard brand: RK-CAD ( similar to EZCAD2 )
• Power supply brand: MW
• High quality filter
• Foot light
• European standard power cord
• A set of silver mirrors
• Set of wrenches
• Lens included 110mm
• Equipped with an internal carving system
• 12 fold beam expansion;70 X 70mm field lens, Internal carving system, Ball screw electric column
• The machine itself contains a lens
• Full Software included
• Over a decade of Local experience with Lifetime support from Neotronics SA
• 18 months warranty

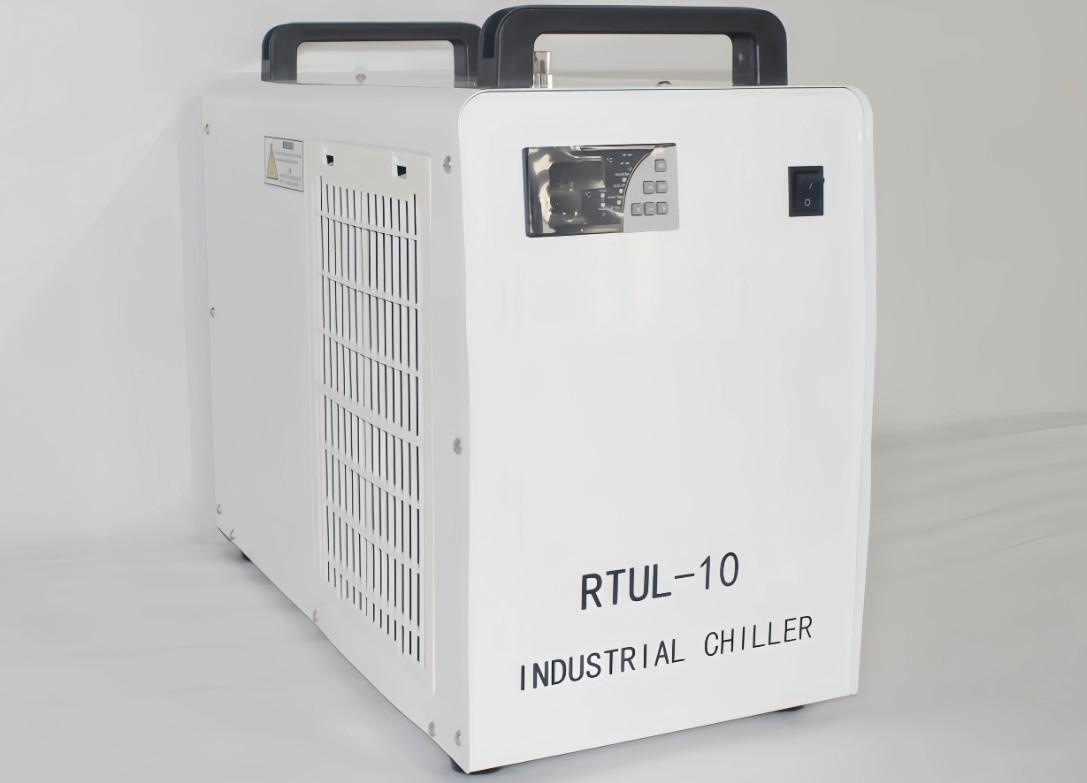

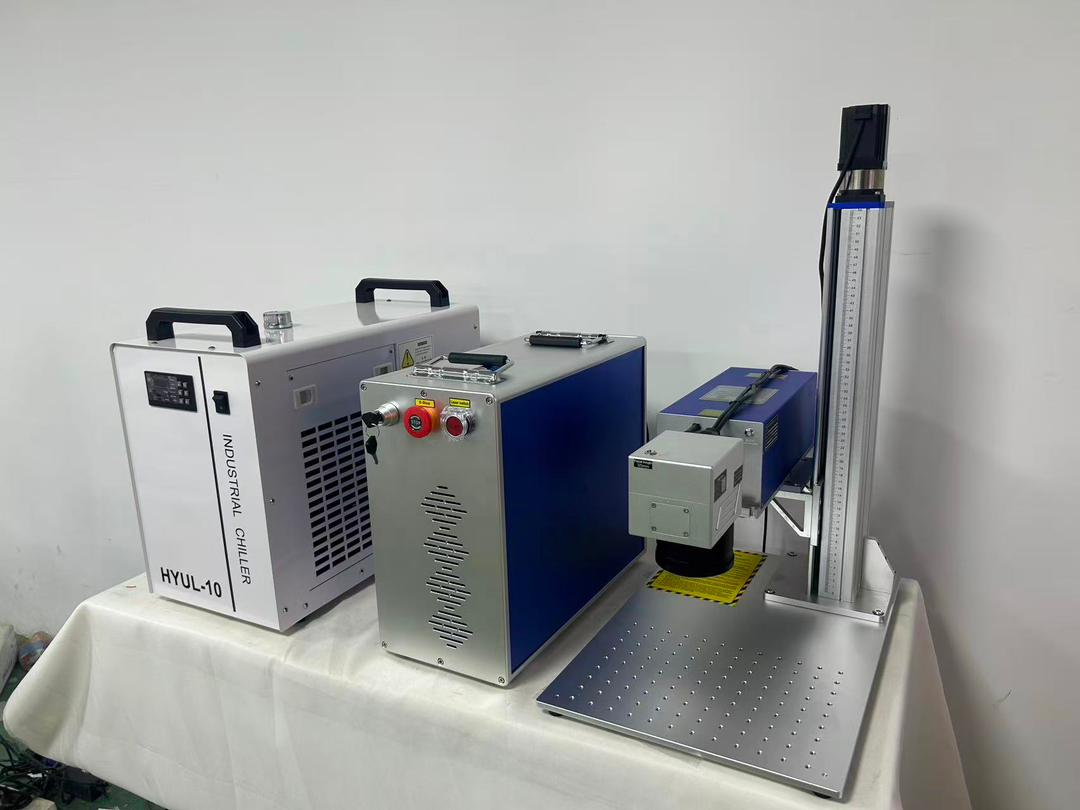

Machine includes the water chiller:

Software: Included with the machine

RK-CAD

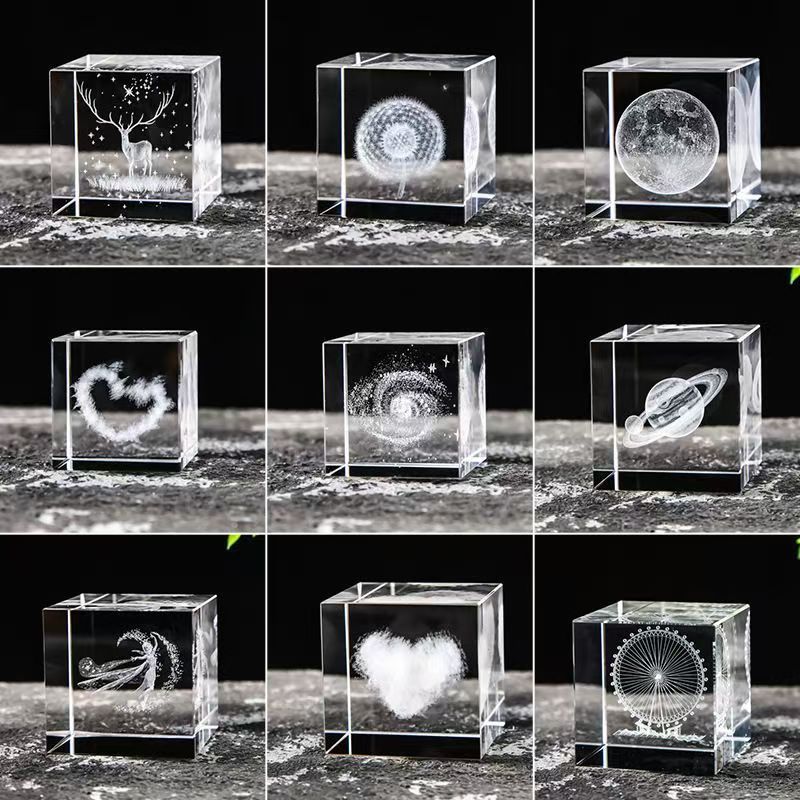

Software that is designed for Laser internal carving technology, also known as laser internal carving or laser internal marking technology, is an advanced processing method that uses high-precision laser to make fine patterns or words inside transparent materials. It is suitable for crystal glass, quartz glass, optical glass, ordinary glass, tempered glass, acrylic and other transparent materials.

The software is used to do designs, layouts and mark all in one software interface. Software guide will be provided upon purchase.

Remote Training and installation will be provided at NO COST when purchasing through Neotronics. This will assist you with setup of the machine and taking you through the use of the software.
