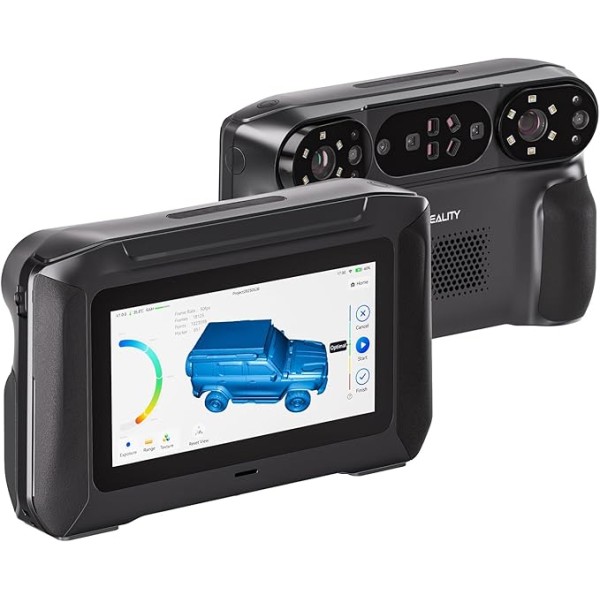

Creality Sermoon P1 All-in-One 3D Scanner

Product Description

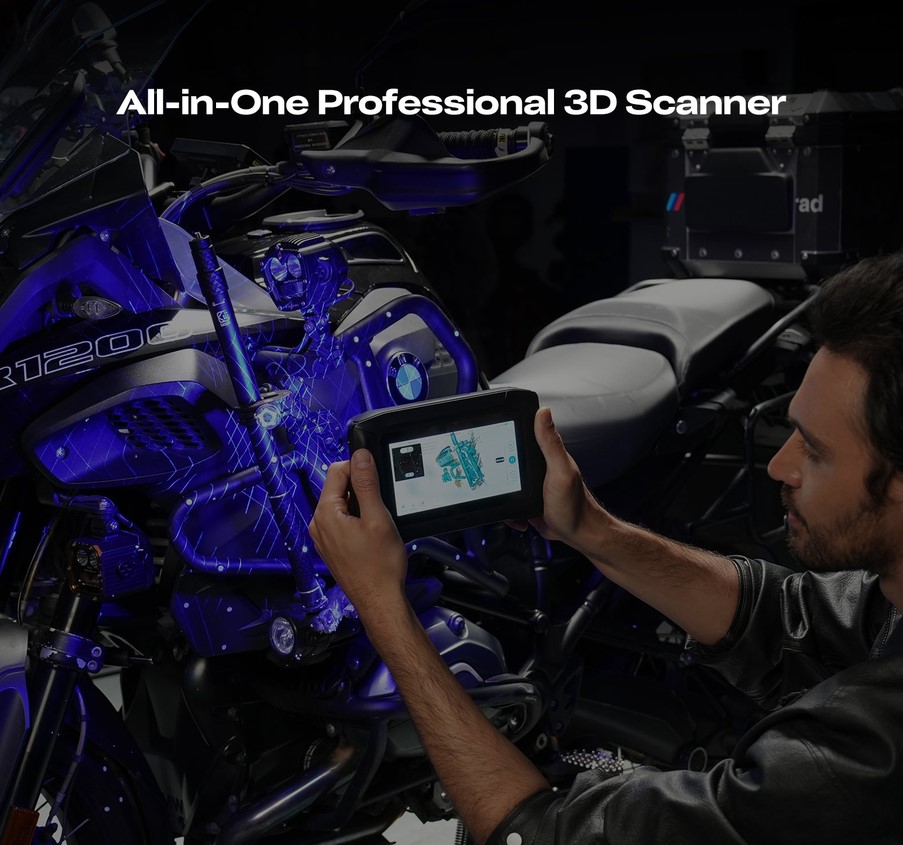

The Creality Sermoon P1 All-in-One 3D Scanner is a professional-grade, standalone 3D scanning solution designed to capture highly accurate digital models without requiring a computer. Combining advanced blue laser and NIR structured light technologies, the Sermoon P1 delivers exceptional precision for scanning everything from small mechanical parts to large objects.  Powered by a high-performance onboard processor with a built-in 6-inch HD touchscreen, the Sermoon P1 allows you to scan, process, and preview models directly on the device. Whether you're working in reverse engineering, quality inspection, product design, heritage preservation, or 3D printing, the P1 provides a fast and efficient workflow with reliable, repeatable results.

With support for standalone, wireless, and wired operation, plus hot-swappable batteries for uninterrupted scanning, the Sermoon P1 offers maximum flexibility for both studio and on-site applications. Its wide scanning range, high-speed capture, and metrology-level accuracy make it an ideal choice for professionals seeking a powerful all-in-one 3D scanning solution.

Product Specs

• Scanning Technology: Blue Laser + NIR (Near-Infrared) Structured Light
• Laser Modes: 22 Cross Laser Lines, 7 Parallel Laser Lines, Single Laser Line
• Scanning Accuracy: Up to 0.02 mm
• Volumetric Accuracy: 0.02 mm + 0.06 mm/m
• Scanning Speed:
• Up to 100 FPS (PC Mode)
• Up to 60 FPS (Standalone Mode)
• Minimum Scan Size: 5 × 5 × 5 mm
• Maximum Scan Size: 4000 × 4000 × 4000 mm
• NIR Scanning Range: 150 × 150 × 150 mm to 2000 × 2000 × 2000 mm
• Texture Capture: Full-colour RGB camera with Global Shutter
• Processor: Qualcomm 8-Core Processor with CPU, GPU & FPGA acceleration
• Memory: 24 GB LPDDR5X RAM
• Storage: 256 GB UFS 4.0
• Display: 6-inch Full HD Touchscreen
• Connectivity: Wi-Fi 7, USB-C
• Power: Dual 3300 mAh hot-swappable rechargeable batteries
• Operating Modes: Standalone, Wireless, and PC Connected
• Software Features: Calibration, scanning, point cloud fusion, mesh editing, multi-scan merging, and onboard model processing
• Supported Export Formats: STL, OBJ, PLY
• Compatible Software: Creality Scan, QuickSurface, Geomagic Design X, and other major reverse engineering and CAD software
• Dimensions: 209 × 53 × 129 mm
• Weight: 830 g
• Applications: Reverse engineering, quality inspection, product design, 3D printing, automotive, manufacturing, cultural preservation, education, healthcare, and digital archiving.

Product Features

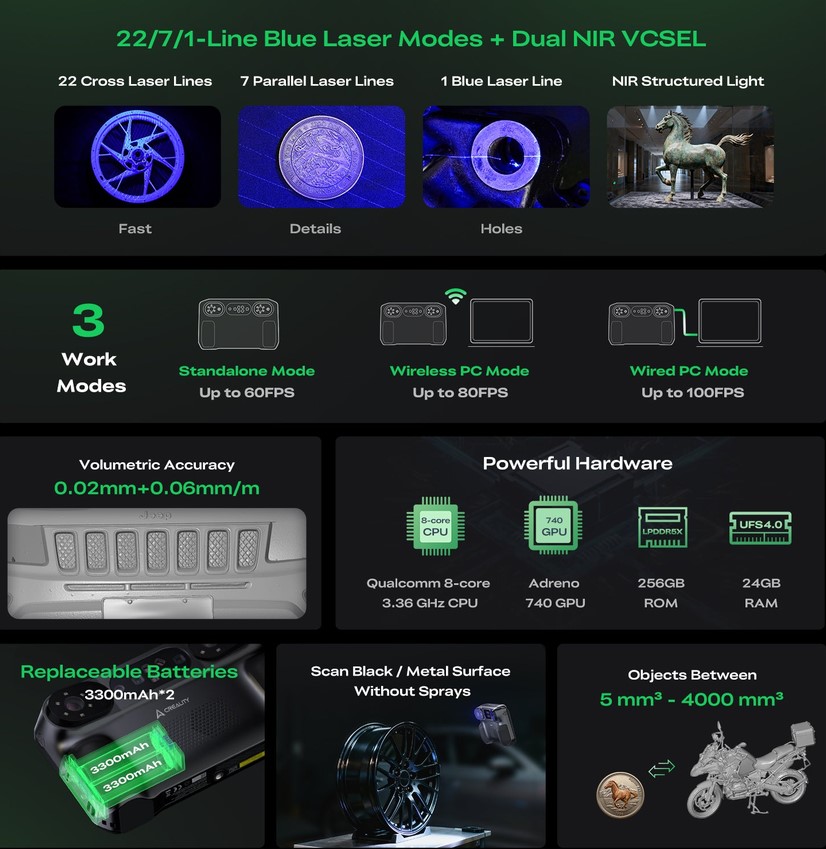

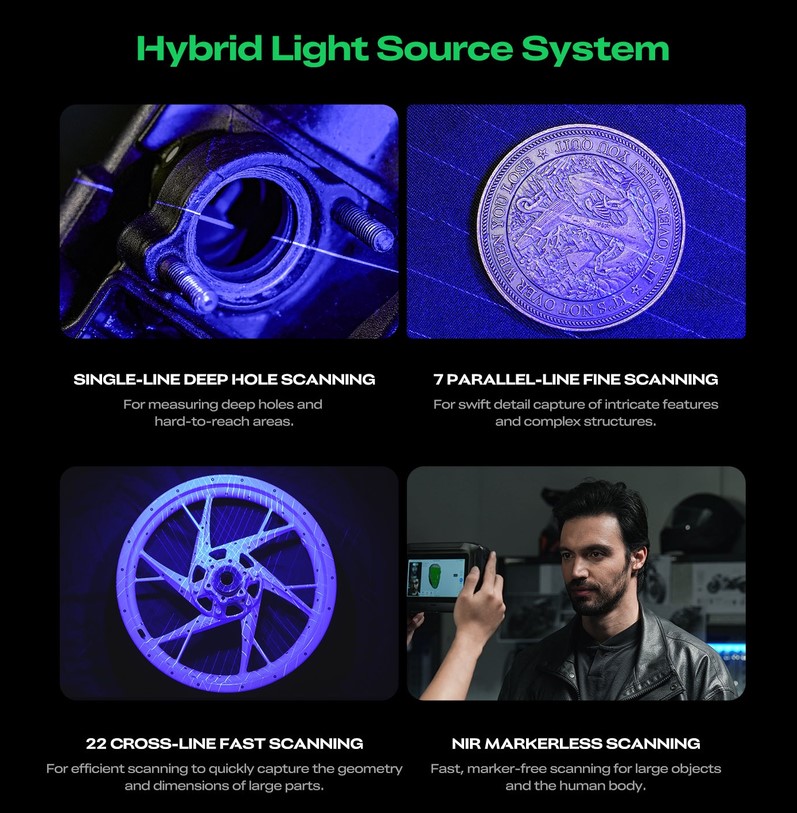

• Multi-Line Scanning for Speed & Detail：22+7+1 Blue Laser Lines + Dual NIR VCSEL ensure fast, complete capture. Handles complex shapes, holes, and fine details efficiently, minimizing rescans.
• Versatile Size Range：Accurately scan objects from 5 mm³ to 4000 mm³, from small precision parts to large assemblies, with a single device.
• High Precision for Demanding Work： 0.02mm + 0.06mm/m volumetric accuracy delivers reliable, dimensionally accurate models for engineering, inspection, and digital archiving.

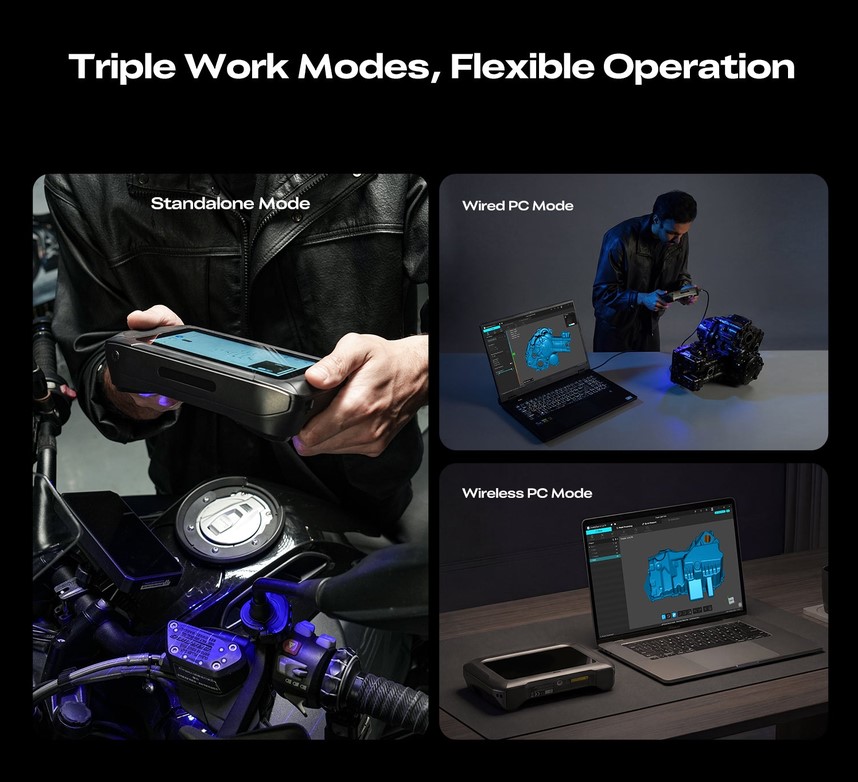

• 3 Modes for Maximum Flexibility： Use standalone, wirelessly, or wired to match your task. Enjoy full portability for fieldwork or stable real-time streaming to your PC.

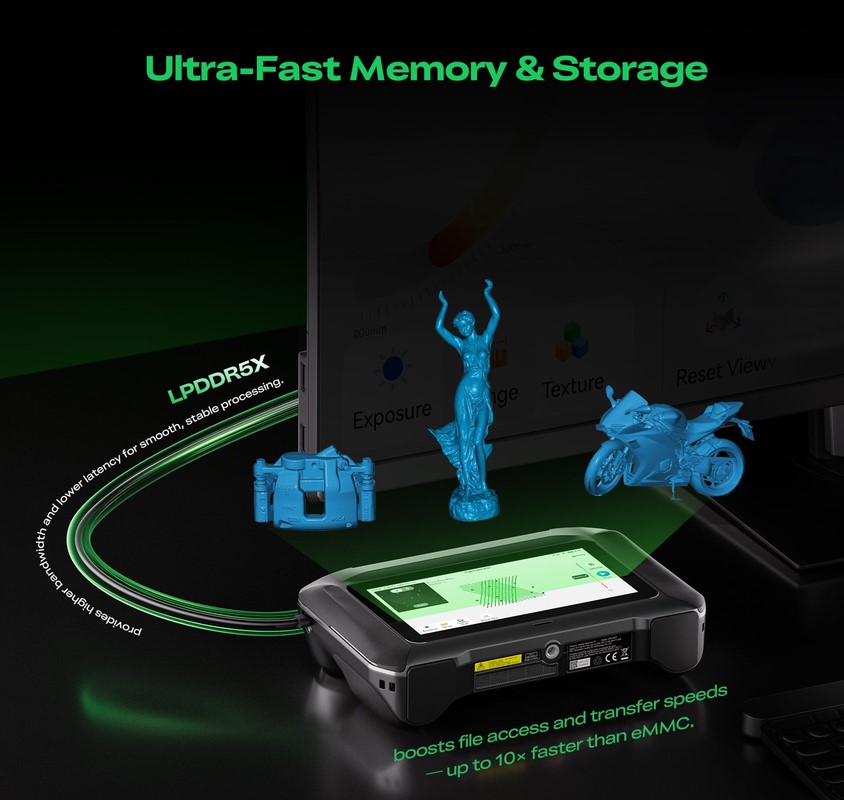

• Hardware Built for Performance: A high-performance processor (CPU/GPU/FPGA), 6-inch HD screen, 24GB RAM, 256GB storage, and Wi-Fi 7, enabling high-precision scanning and data post-processing without a computer enable smooth, real-time processing of high-resolution scans without slowdowns.
• Uninterrupted Operation： Two hot-swappable 3300mAh batteries provide extended, continuous scanning. Swap batteries without powering down for non-stop workflows.

Please note: Locally Stocked. Available for Immediate Shipping.
