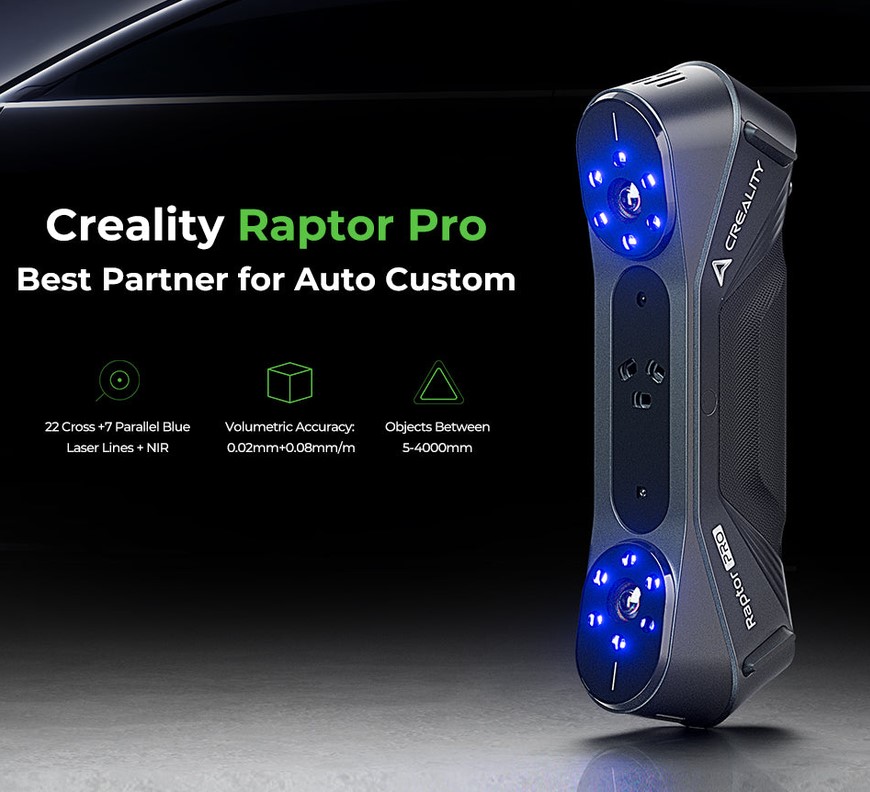

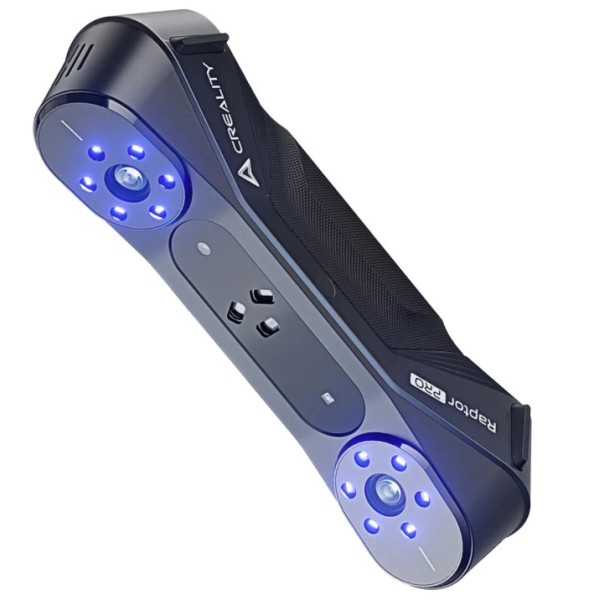

Creality Raptor Pro 3D Scanner - Hybrid 3 in 1

Product Description

The Creality Raptor Pro Hybrid 3-in-1 3D Scanner is a professional scanning solution designed to deliver unmatched versatility and precision across a wide range of applications. Combining blue laser, NIR structured light, and infrared scanning technologies into one compact device, the Raptor Pro effortlessly captures everything from tiny, intricate components to large industrial objects with outstanding accuracy. Its advanced hybrid scanning system allows users to switch between scanning modes to suit different materials, object sizes, and environments. Whether you're performing reverse engineering, quality inspection, product development, cultural preservation, or preparing models for 3D printing, the Raptor Pro provides fast, reliable, and highly detailed results.

Equipped with high-speed data capture, full-colour texture acquisition, and intelligent alignment algorithms, the scanner streamlines the entire digitising workflow while reducing scanning time. Its lightweight ergonomic design makes it suitable for both desktop and portable use, while broad compatibility with professional CAD, inspection, and mesh-editing software ensures seamless integration into existing workflows.

It is the ideal choice for engineers, designers, manufacturers, educators, and creators looking for a powerful, all-in-one 3D scanning solution that combines speed, flexibility, and metrology-grade precision.

Product Specs

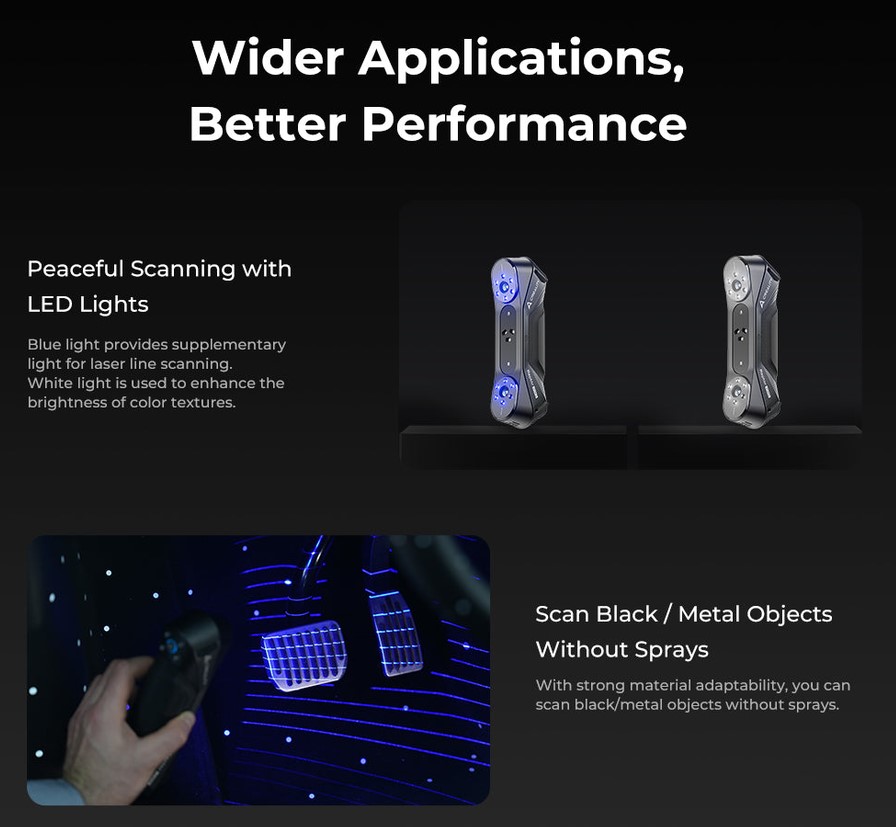

• Scanning Mode : Blue Light(7 blue parallel laser lines&22 cross blue laser lines) / NIR(infrared binocular structured light) >>Blue Light Mode: 7 blue parallel laser lines | 22 cross blue laser lines)
• Accuracy: Up to 0.02mm
• Volumetric Accuracy: 0.02+0.08mm/m
• Scanning Speed: 420,000 measurements/s | 660,000 measurements/s
• Single Capture Range: 270mmx170mm@300mm | 270mm x 170mm@300mm 341mm x 232mm@400mm 397mm x 290mm@500mm( 22 cross blue laser lines)
• Single Capture Range: 270mmx170mm@300mm | 270mm x 170mm@300mm 341mm x 232mm@400mm 397mm x 290mm@500mm
• Working distance: 160mm-400mm | 200-550mm
• Outdoor Scanning: Below 50,000 lux | Below 10,000 lux
• >>NIR(infrared binocular structured light) Mode:
• Accuracy：Up to 0.075mm
• Volumetric Accuracy: 0.075mm+0.1mm/m
• Scanning rate: 3,580,000 measurements/s
• Single Capture Range：630mm×550mm@1000mm
• Working distance: 170mm-1000mm
• Outdoor Scanning: Below 30,000
• General Parameters:
• System Support: Windows 10/11(64 bit):i7-Gen10 and above, Nvidia graphics card (8GB video memory and above), 32GB memory and above Minimum：i7-Gen7, Nvidia graphics card (6GB video memory), 16GB memory macOS: 11.7.7 and above, Apple M1/M2/M3 series processors; RAM: 16GB and above
• Wireless Scanning: Support
