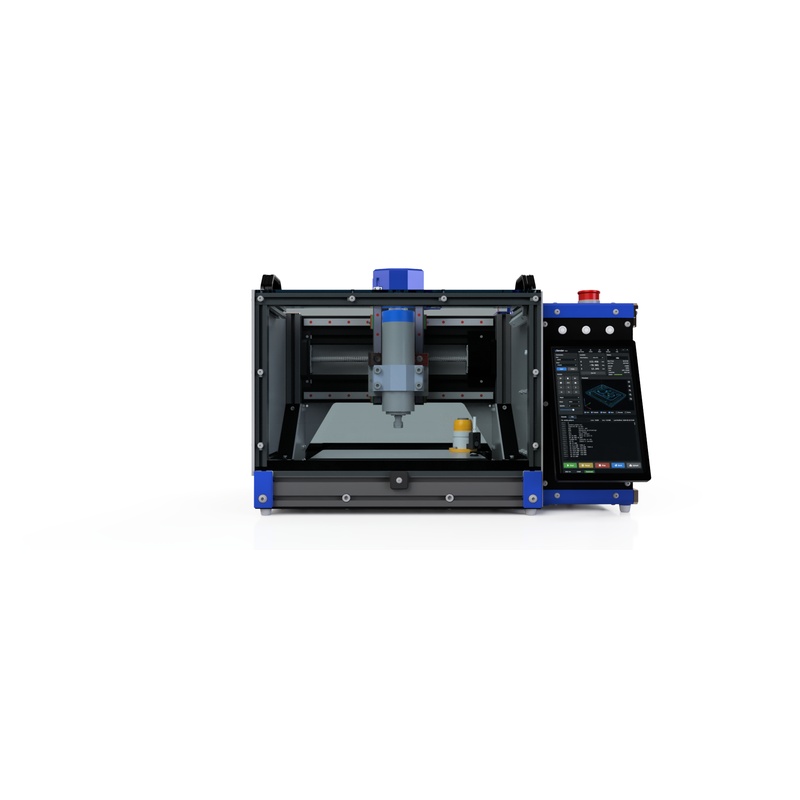

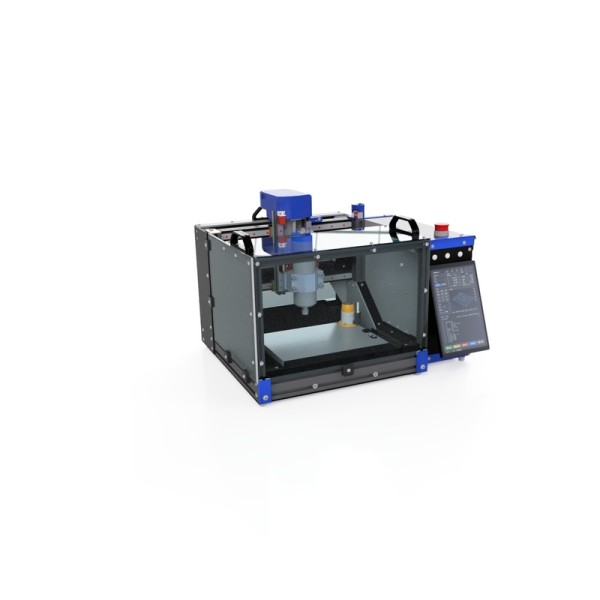

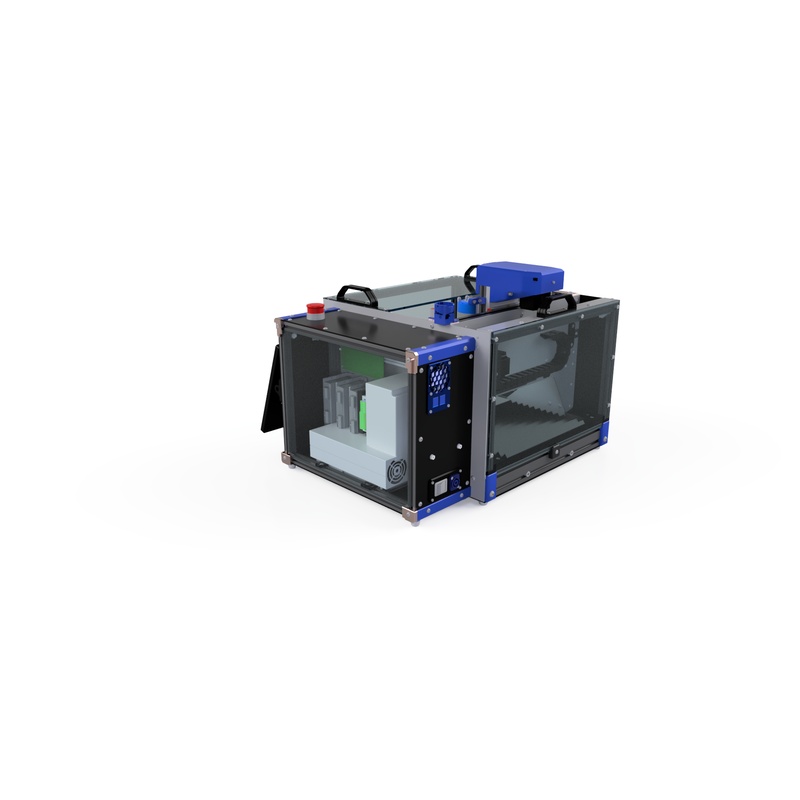

ProCut Series Mini - CNC Router & Milling Machine 1.5kw with Enclosure

Product Description

Neotronics SA has been in the CNC Laser industry for over 10 years. With unmatched support and price, we're one of the largest CNC Laser stores in South Africa. Purchasing from Neotronics SA will give you free access to the following:

1 x Complete Custom Built CNC machine with enclosure ( Shipped assembled, ready to use )

Machine to be collected at the workshop

Affordable without compromising quality and stability

1 Year Warranty on the mechanical frame end-to-end

Over a decade of CNC experience, offering you Local lifetime support at a reliable supplier

Assistance with software use and guidance

Join the Neotronics experience!

Meet the newest addition to the Neotronics SA lineup — a compact CNC machine built for makers, engineers, and workshops who need serious cutting power without a serious footprint.

Don't let its size fool you. This machine is small, strong, and built like a tank, engineered to deliver confident, repeatable results on brass, aluminium, and hardened materials alike. Whether you're milling intricate components or cutting through tougher stock, it holds its line and holds its accuracy — pass after pass, part after part. Built with high quality products.

At the heart of the machine is a rigid frame designed to absorb vibration and resist flex under load, so you get clean edges and tight tolerances even when you're pushing the machine hard. It's built for powerful work in a small cutting area— ideal for workshops and production lines where floor space is limited, but performance expectations aren't. Getting through tough and stubborn materials.

Controlling the machine is effortless thanks to a large 10.1-inch integrated touch panel, putting full control of your jobs literally at your fingertips — no clunky external controllers, no outdated interfaces. And because the machine runs on open-source firmware and control software, you're never locked into a single ecosystem. Customise it, extend it, integrate it — the machine adapts to your workflow, not the other way around. Its controller is beefed up and runs on Raspberry Pi 5, powered by the latest model.

Proudly engineered and built in South Africa by Neotronics SA, this machine is a testament to what local manufacturing can achieve: world-class engineering, without the wait times, import costs, or support headaches that come with overseas machines. When you buy this CNC machine, you're not just getting a precision tool — you're backing South African manufacturing, with local support, local parts, and a team that's a phone call away.

Small footprint. Big capability. Built here, backed here.

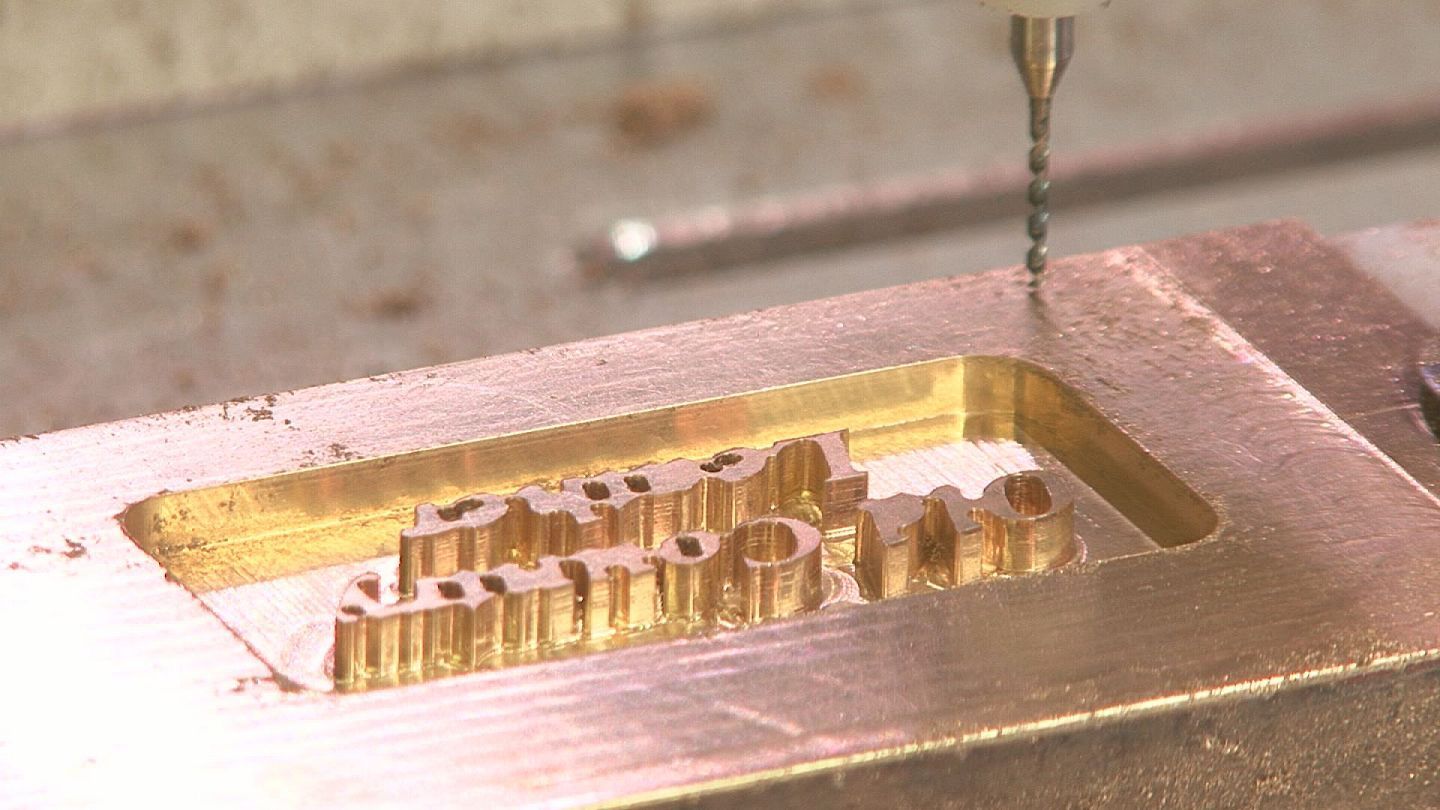

• Materials: Aluminium. Purpose-built for machining brass, aluminium, and hardened metals, delivering clean finishes and consistent tolerances across material types
• Compact cutting envelope: A small working area of 275 x 220 x 90mm, engineered for powerful, high-precision work without the footprint of a full-size industrial machine
• Rigid, robust build: Reinforced frame construction designed to minimise vibration and flex, even under hardened-material cutting loads
• Large touch panel control: 10.1-inch full-colour integrated touchscreen interface for intuitive job setup, monitoring, and control — no separate PC required
• Open-source platform: Built on open-source control software and firmware, giving users the freedom to customise, upgrade, and integrate with their own tooling and workflows
• Compatible Software: GRBL Software, Millmage, Easel, Vectric, Openbuilds software & more
• Spindle power: 1.5KW Air Cooled
• Connectivity: USB / WIFI
• Voltage:220vA
• Current:6A
• Frequency:0-400Hz
• Speed:0-24000rpm
• Runout Off: 0.01mm
• Diameter(mm): 65mm
• Stepper Motor - NEMA 23 57x112mm 4-lead 3A
• End stops, limit switches

FAQ

1. Is this CNC machine suitable for a home workshop or small business? Yes. Its compact footprint makes it a great fit for home workshops, small manufacturing setups, and businesses that need precision machining without dedicating significant floor space.

2. Can it handle harder metals, or is it just for soft materials like aluminium? The machine is built for both. It's engineered to cut cleanly through brass and aluminium while also handling hardened materials, thanks to its rigid frame and robust construction. Testing the material is an important factor too.

3. Do I need a computer connected to the machine to operate it? No. The large integrated touch panel gives you full control over job setup and operation directly on the machine, so a constant PC connection isn't required. It is optional.

4. What does "open-source" mean for this machine, and why does it matter? It means the control software and firmware are open for customisation rather than locked to one manufacturer's proprietary system. This gives you the freedom to tweak settings, add features, or integrate the machine with other tools and workflows as your needs grow. It supports many CNC software options for your convenience.

5. Is this machine actually manufactured in South Africa, or just assembled here? It's proudly designed and built in South Africa by Neotronics SA — from engineering through to final assembly and testing.

6. What kind of after-sales support and spare parts availability can I expect? Because the machine is built locally, support and spares are sourced from within South Africa — meaning faster turnaround, easier communication, and none of the long shipping delays or import costs associated with overseas machines.

Allow 3-4 weeks for manufacturing.

Locally manufactured: Designed, built, and supported in South Africa by Neotronics SA.
