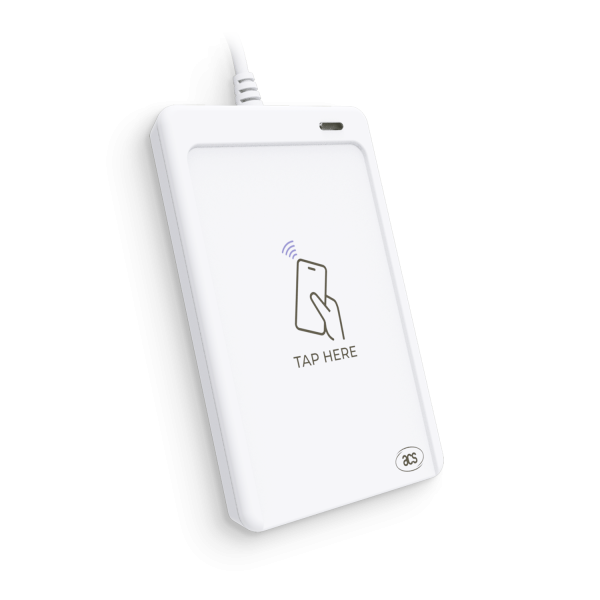

WalletMate II Mobile Wallet NFC Reader (Apple MFi Certified & Google Smart Tap Certified)

Product Description

The WalletMate II is a versatile NFC reader designed to enhance smartphone applications. Certified for Apple MFi (VAS ECP1.0 and Access ECP2.0) and Google Smart Tap, it seamlessly supports virtual passes such as loyalty cards, tickets, and IDs across iOS and Android, delivering a smooth, cardless experience with simple tap-to-go functionality. With Apple MFi certification and Google Smart Tap certification, the WalletMate II supports compatible digital wallet applications, making it suitable for modern NFC-based customer interactions.

Ideal for digital loyalty programmes, membership cards, access control integrations and other supported mobile wallet applications, this reader offers a convenient solution for businesses and developers.

Flexible NFC Modes.

Supports three operating modes:

• Smart Card Reader/Writer
• Card Emulation
• Keyboard Emulation

Ideal for applications like payments, access control, ticketing, loyalty programs, and smart marketing. Works seamlessly with Windows®, Linux®, macOS®, and Android™, making it a reliable and adaptable solution for industries like finance, healthcare, and government.

Product Specs

Physical Characteristics

• Dimensions (mm): Main Body: 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
• Antenna size: 50.0mm x 40.0 mm
• Weight (g): 86g ± 5 g

USB Interface

• Current Consumption Max. 300mA
• Supply Voltage: 5VDC
• Protocol USB CCID
• Connector Type: USB Type-A
• Speed: USB Full Speed (12 Mbps) compatible with USB 3.0
• Cable Length: 1.0 m, Non-detachable
• Contactless Smart Card Interface

Contactless Smart Card Interface

• Standard: ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC, MIFARE
• Protocol ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC, MIFARE Classic®, MIFARE®, DESFire®, MIFARE Ultralight®, MIFARE Plus®, FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz

SAM Card Interface

• Standard: 1xISO 7816 Class A (5V,3V) Standard SIM size slot
• Read/Write Speed: 13.4kbps - 1,250kbps
• Clock Frequency 5MHz, up to 10 MHz (Upon request)
• Protocol T=0, T=1

Built-in Peripherals

• LED: 1 bi-color: Blue and Green
• Buzzer: User-controllable buzzer

Other Features

• Firmware Upgrade: Supported
• Certifications/Compliance
• Certifications/Compliance

Certifications / Compliance:

• Apple MFi (VAS ECP1.0 & Access ECP2.0), Google Smart Tap, IEC/EN 62368, CE, UKCA, FCC, VCCI, RoHS, REACH, Microsoft® WHQL
• USB CCID, PC/SC, WEEE

Device Driver Operating System Support

• Device Driver Operating System Support: Windows®, Linux®, macOS, Android™

Product Features

• Apple MFi Certified: Fully certified for Apple VAS ECP1.0 and Access ECP2.0 protocols.
• Google Smart Tap Certified: Fully certified for Google Smart Tap protocol.
• Smart Card Support: Compatible with ISO 14443 Type A & B, MIFARE®, FeliCa, ISO18092 NFC, and ISO 15693 cards.
• High-Speed Communication: Operates at up to 848 kbps with advanced security features like mutual authentication and key diversification.
• Compact Design: Perfect for integration into handheld devices, kiosks, and IoT devices without sacrificing functionality.
• Reliable & Certified: MTBF of 500,000 hours and certifications including CE, FCC, RoHS, and Microsoft® WHQL.

Please note: Locally Stocked. Available for Immediate Shipping.
