CNC Spindle Motor 500W Bundle

Product Description

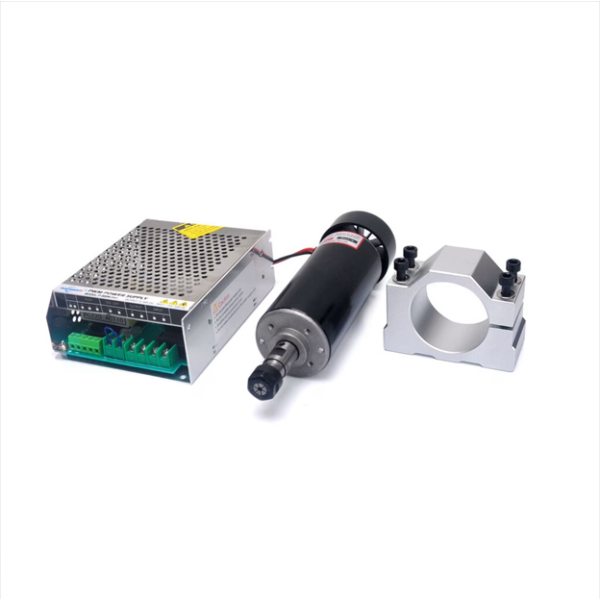

This is the Spindle Motor 500W Bundle. It comes with 500W Spindle Motor, 52mm clamp, power supply governor and 13 ER11. This CNC Spindle Motor also supports MACH3 Software.

All our spindle motors are certified. We offer complete support on all our machines and products purchased from us.

Product Specs:

• Operating voltage: 100VDC
• Power: 500W
• Speed: Up to idle up to 12,000 rev / min
• Torque: 5000G/CM
• Insulation resistance:> 2 megohms
• Dielectric strength: 400V
• Diameter: 52mm
• Chuck portion length: 45MM
• Chuck portion diameter: 16mm
• Motor Length: 200MM
• High precision spindle runout 0.01-0.03
• Operating Speed: 3000-12000RPM
• Maximum Torque: 0.55nm
• Package Size: 20cm x 20cm x 20cm (7.87in x 7.87in x 7.87in)
• Package Weight: 2.4kg

Product Package

• _{1 X 500W Spindle Motor}
• _{1 X Power Supply speed governor}
• _{1  X52mm clamps}
• _{4 X screws(free)}
• _{13 X  ER11 collets}

Please note: Locally Stocked. Available for Immediate Shipping!
