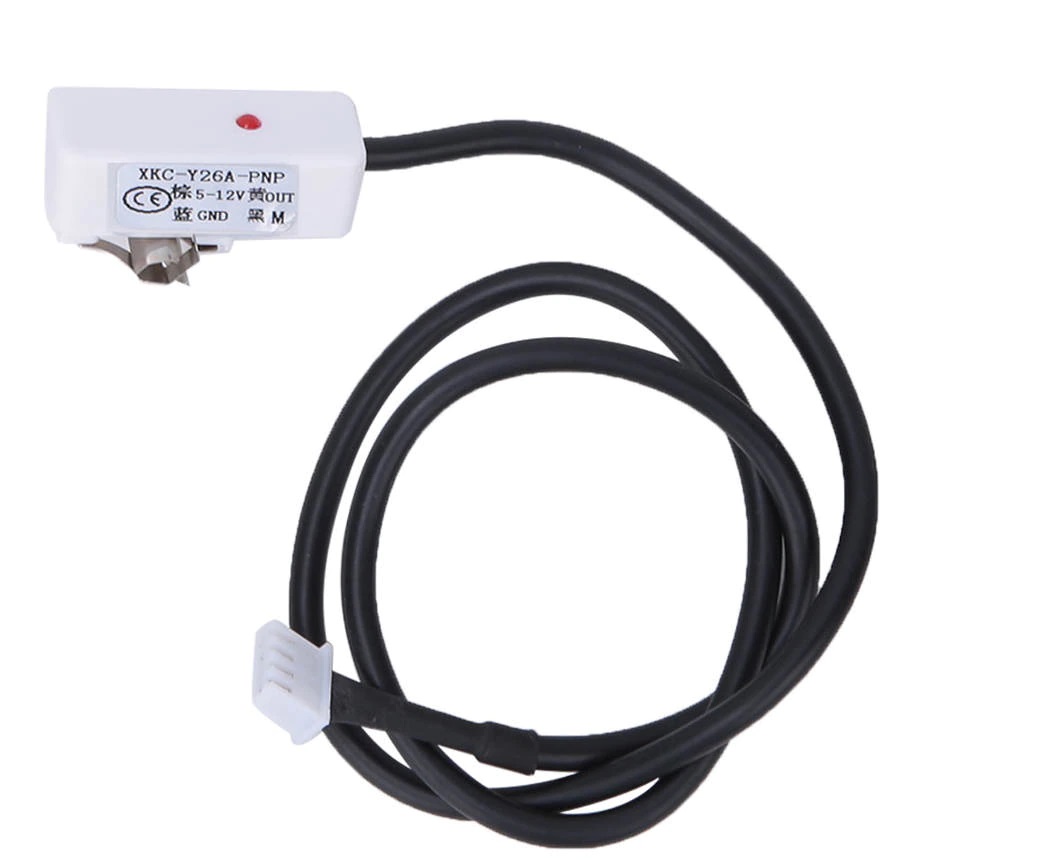

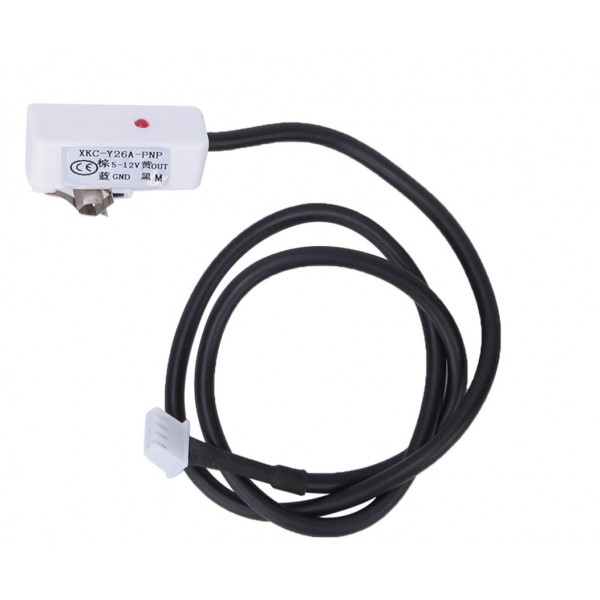

XKC-Y26 PNP - 5-12V Intelligent Non-Contact Liquid Level Sensor - Water Level Sensor-50CM

Product Description

1. The sensor is suitable for the outer wall of non-metallic pipe without direct contact with liquid, will not be corroded by corrosive liquid such as strong acid and alkali, and is not affected by scale or other debris.

2. Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, can realize the multi-point series connection.

3. The detection is accurate and stable, and the boiling water level can be detected.

4. Pure electronic circuit structure, non-mechanical working mode, stable performance, and longevity.

5. Strong compatibility, penetrating various non-metallic container pipes, such as plastic, glass, ceramics, etc., induction pipe diameter 3~10mm; suitable for all kinds of plastic pipes, rubber pipes, nylon pipes, glass pipe pipes Level detection.

6. Wide voltage range (5~12V), suitable for connecting various circuits and product applications.

7. High stability, high sensitivity, strong interference capability, free from external electromagnetic interference, special treatment for power frequency interference and common mode interference, to be compatible with all 5~12V power adapters on the market.

Product Specs

• Item Type: Liquid Level Sensor

• Working Voltage: 5-12 (V)
• Induction Principle: Capacitive Liquid Level Sensing
• Output Form: High and Low-Level Signal
• Scope Of Application: Liquid Sensing In Various Containers
• Model: XKC-Y26A-V
• Output Voltage (High Level): Vin
• Output Voltage (Low Level): 0V
• Response Time: 500mS
• Output Current: 1~100mA
• Working Environment Temperature: 0~75°C
• Diameter Range Of The Pipe Used: 3~10mm
• Level Error: ±2mm
• Humidity: 5%~100%
• Material: ABS
• Waterproof Performance: IP65
